DRIVE SELECTION SWITCH INSPECTION [(US)]
DRIVE SELECTION SWITCH INSPECTION [(US)]
SM2334882
id0121001001b0
1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)
2.Remove the drive selection switch. (See DRIVE SELECTION SWITCH REMOVAL/INSTALLATION)

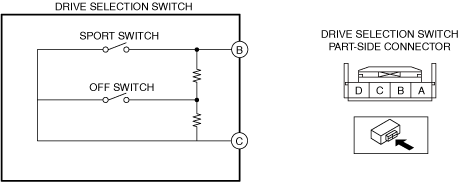

3.Measure the resistance between drive selection switch terminals B and C using a tester.
am3zzw00034780
|
-
• If not within the specification, replace the drive selection switch. (See DRIVE SELECTION SWITCH REMOVAL/INSTALLATION.)
|
Switch condition |
Resistance (ohm) |
|---|---|
|
SPORT switch held at on
|
Approx. 0
|
|
OFF switch held at on
|
Approx. 470
|
|
any switch not pressed
|
Approx. 2,670
|
