Caution

• Perform the wheel balance adjustment on the outer side first, then the inner side.

• Be careful not to damage the wheel.

• Use genuine balance weight.

Adhesive-type Balance Weight (Outer side)

1.Remove the balance weight from the wheel.

2.Remove the double-sided adhesive tape left on the wheel and remove any grease and dirt from the adhesive surface.

3.Measure the unbalance amount and the balance weight attachment position using the wheel balancer.

4.Select the balance weight equivalent to the measured unbalance amount (weight).

5.Affix the selected balance weight to the balance weight affixing position (outer side) displayed by the wheel balancer.

Caution

• Completely attach the balance weight by pressing it with 25 N {2.5 kgf, 5.6 lbf} or more of force per 5 g {0.2 oz} for 2 s or more.

• Do not install four or more weights. (VIN: Except 3M ^**)

• Do not install three or more weights. (VIN: 3M ^**)

• Do not attach the balance weights in parallel or stack them.

• One weight is 120 g {4.23 oz} or less and three weights are 160 g {5.64 oz} or less. (VIN: Except 3M ^**)

• One weight is 120 g {4.23 oz} or less and two weights are 120 g {4.23 oz} or less. (VIN: 3M ^**)

• If a weight of 125 g {4.41 oz} is to be added, divide the weight into two pieces and affix. (VIN: JM ^**)

am3zzw00024750

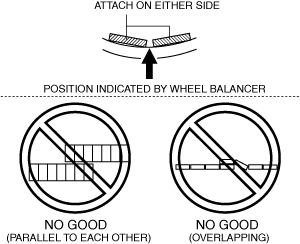

• When affixing two balance weights, affix one on the left and the other on the right centering the balance weight affixing position displayed on the wheel balancer.

am2zzw00008653

Knock-type Balance Weight (Inner Side)

1.Measure the unbalance weight and the balance weight clipping point using the wheel balancer.

2.Select the balance weight equivalent to the measured unbalance amount (weight).

Note

• Select the balance weight so that the weight is nearest to the calculated value.

Ex.1) 32.4 g {1.14 oz} (calculated value) 30 g {1.06 oz} (weight of balance weight to be selected)

Ex.2) 32.5 g {1.15 oz} (calculated value) 35 g {1.23 oz} (weight of balance weight to be selected)

3.Install the selected balance weight to the balance weight clipping position (inner side) displayed on the wheel balancer.

Caution

• Do not install three or more balance weights.

• The weight of one balance weight must be 60 g {2.1 oz} or less, and the total weight of two balance weights must be 100 g {3.53 oz} or less.

am3zzw00022993

Residual Unbalance Amount Verification

1.After installing the balance weights on the outer and inner sides, measure the wheel balance again.

Standard

• If not within the specification, adjust the wheel balance again.
