FRONT WHEEL HUB BOLT REPLACEMENT
FRONT WHEEL HUB BOLT REPLACEMENT
SM2335010
id031100800200
Special service tool (SST)
|
49 T028 3A0
Ball joint puller set
|
 |
Replacement part
|
Front wheel hub bolt
Quantity: 5
Location of use: Front wheel hub
|
1.Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

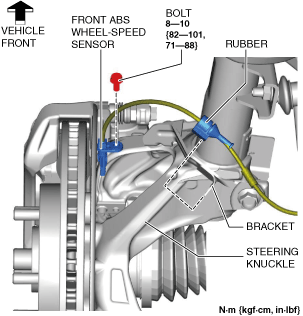

2.Disconnect the rubber from the bracket.
am3zzw00023066
|
3.Disconnect the front ABS wheel-speed sensor wiring harness on the steering knuckle and set it aside so that it does not interfere with the servicing.
4.Remove the clip from the bracket.
am3zzw00023067
|
5.Remove the front brake hose from the bracket.
6.Remove the front brake caliper component and suspend it in a place out of the way using a cable. (See FRONT BRAKE DISC REMOVAL/INSTALLATION.)
7.Remove the front disc plate. (See FRONT BRAKE DISC REMOVAL/INSTALLATION.)
8.Remove the front wheel hub bolt using the SST as shown in the figure.
ac5jjw00003203
|
9.Pass the new front wheel hub bolt through the wheel hub.
10.Install the front wheel hub bolt by placing an appropriate-sized washer on the wheel hub and tightening the wheel nut as shown in the figure.
am3uuw00006182
|
