id031300801200

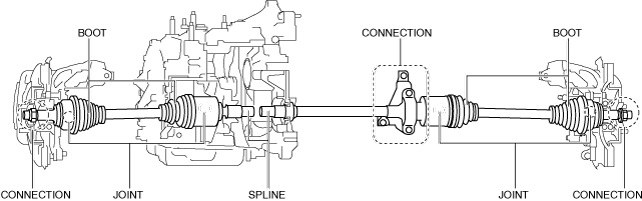

1.Remove front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

2.Inspect the connections for any looseness.

ac30zw00001977

• If there is any malfunction, tighten or replace the applicable part. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION [(US)].)

3.Inspect the dust boot for cracks and damage.

• If there is any malfunction, replace the applicable part. (See FRONT DRIVE SHAFT (TRIPOD JOINT) DISASSEMBLY/ASSEMBLY [(US)].) (See FRONT DRIVE SHAFT (DOUBLE OFFSET JOINT) DISASSEMBLY/ASSEMBLY [(US)].)

4.Move the spline area and joint area up/down and left/right and inspect for excessive play.

• If there is any malfunction, replace the applicable part. (See FRONT DRIVE SHAFT (TRIPOD JOINT) DISASSEMBLY/ASSEMBLY [(US)].) (See FRONT DRIVE SHAFT (DOUBLE OFFSET JOINT) DISASSEMBLY/ASSEMBLY [(US)].)
