FRONT BRAKE DISC PAD REMOVAL/INSTALLATION
FRONT BRAKE DISC PAD REMOVAL/INSTALLATION
SM2335159
id041100000200
Replacement Part
|
Spring
Quantity: 2
Location of use: Disc pad
|
Wear indicator
Quantity: 1
Location of use: Disc pad
|
Oil and Chemical Type
|
Brake grease (Brown-gray)
Type: PLASTILUBE
|
Brake grease (White)
Type: KLUBER
|
1.Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

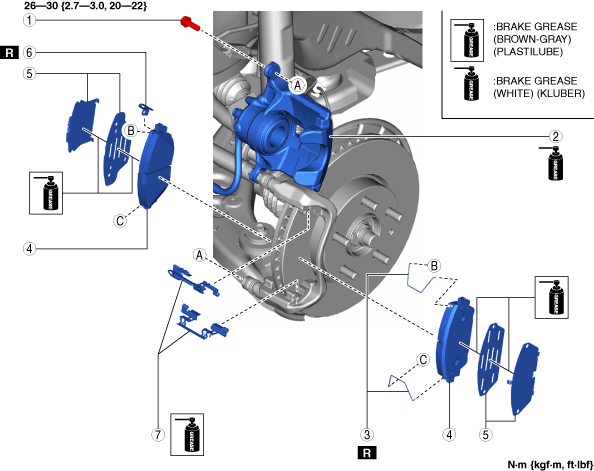

2.Remove in the order indicated in the table.
3.Install in the reverse order of removal.
4.After installation, depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.
am3zzw00036165
|
|
1
|
Bolt
|
|
2
|
Front brake caliper
|
|
3
|
Spring (if equipped)
|
|
4
|
Disc pad
|
|
5
|
Shim
|
|
6
|
Wear indicator
|
|
7
|
Guide plate
|
Guide Plate Installation Note
-
Caution
-
• When assembling the guide plates to the front brake mounting support, securely assemble them on the leading side and trailing side to each position shown in the figure. If the guide plates are assembled to the incorrect positions, it could become a source of noise.
1.Install the guide plate as shown in the figure.
am3zzw00031270
|

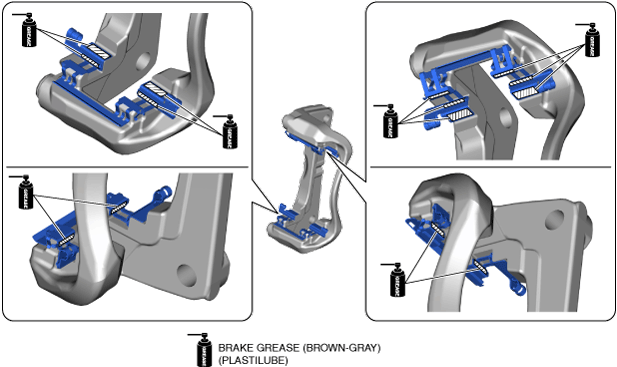

2.Apply grease to the locations shown in the figure.
am3zzw00031271
|
Front Brake Caliper Installation Note
1.Clean the exposed area of the piston.
2.Push the piston in using the commercially available disc brake expand tool.
am3zzw00025018
|
3.Apply grease to the locations shown in the figure.
am3zzw00031272
|
4.Install the disc pads to the front brake mounting support.
5.Return the front brake caliper to the original position and install the bolt.
