FRONT BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION
FRONT BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION
SM2335162
id041100000500
Replacement Part
|
Dust boot
Quantity: 2
Location of use: Front brake mounting support
|
Bush
Quantity: 2
Location of use: Slide pin
|
Spring
Quantity: 2
Location of use: Disc pad component
|
Oil and Chemical Type
|
Brake grease (Brown-gray)
Type: PLASTILUBE
|
Brake grease (White)
Type: KLUBER
|
Rubber grease (Orange-red)
Type: NIGLUBE
|
1.Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)
2.Remove in the order indicated in the table.
3.Install in the reverse order of removal.
4.Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

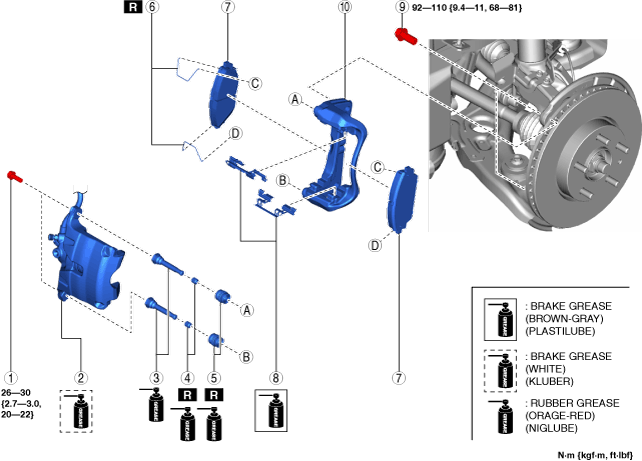

am3zzw00036166
|
|
1
|
Bolt
|
|
2
|
Front brake caliper
|
|
3
|
Slide pin
|
|
4
|
Bushing
|
|
5
|
Dust boot
|
|
6
|
Spring (if equipped)
|
|
7
|
Disc pad component
|
|
8
|
Guide plate
|
|
9
|
Bolt
|
|
10
|
Front brake mounting support
|
Front Brake Caliper Removal Note
1.Remove the front brake caliper and suspend it in a place out of the way using a cable.
am3zzw00025021
|
Guide Plate Installation Note
-
Caution
-
• When assembling the guide plates to the front brake mounting support, securely assemble them on the leading side and trailing side to each position shown in the figure. If the guide plates are assembled to the incorrect positions, it could become a source of noise.
1.Install the guide plate as shown in the figure.
am3zzw00031275
|

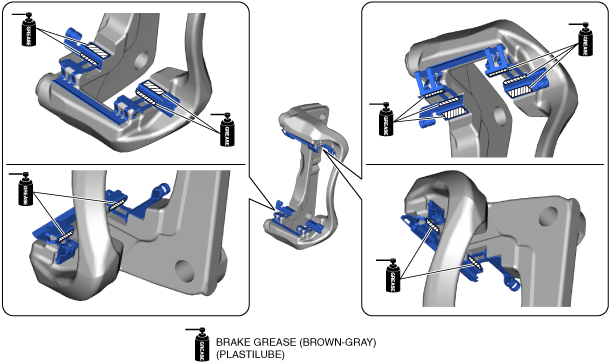

2.Apply grease to the locations shown in the figure.
am3zzw00031276
|
Front Brake Caliper Installation Note
1.Clean the exposed area of the piston.
2.Apply grease to the locations shown in the figure.
am3zzw00031277
|
3.Install the front brake caliper.
