AUTOMATIC TRANSAXLE LOCATION INDEX [ET6A-EL (US)]

AUTOMATIC TRANSAXLE LOCATION INDEX [ET6A-EL (US)]

SM2335464

id0517n11182x5

am3zzw00021691

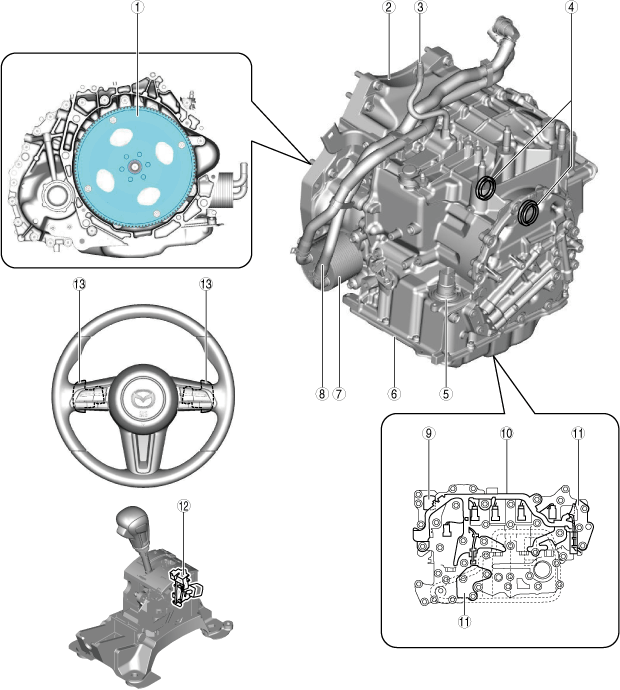

1	Drive plate (See DRIVE PLATE REMOVAL/INSTALLATION [ET6A-EL (US)].)
2	Automatic transaxle (See MECHANICAL SYSTEM TEST [ET6A-EL (US)].) (See ROAD TEST [ET6A-EL (US)].) (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION [ET6A-EL (US)].) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [ET6A-EL (US)].) (See AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT [ET6A-EL (US)].) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5) (US)].) (See INITIAL LEARNING [ET6A-EL (US)].)
3	Breather hose (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5) (US)].)
4	Oil seal (differential) (See OIL SEAL (DIFFERENTIAL) REPLACEMENT [ET6A-EL (US)].)
5	Oil seal (control valve body) (See OIL SEAL (CONTROL VALVE BODY) REPLACEMENT [ET6A-EL (US)].)
6	Control valve body (See CONTROL VALVE BODY REMOVAL/INSTALLATION [ET6A-EL (US)].) (See TCM CONFIGURATION [ET6A-EL].)
7	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5) (US)].)
8	Water hose (See OIL COOLER REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5) (US)].)
9	ON/OFF solenoid (See ON/OFF SOLENOID REMOVAL/INSTALLATION [ET6A-EL (US)].)
10	Coupler component (See COUPLER COMPONENT REMOVAL/INSTALLATION [ET6A-EL (US)].)
11	Oil pressure switch (See OIL PRESSURE SWITCH REMOVAL/INSTALLATION [ET6A-EL (US)].)
12	M position switch/ up switch/ down switch (See M POSITION SWITCH INSPECTION [ET6A-EL].) (See M POSITION SWITCH REMOVAL/INSTALLATION [ET6A-EL].) (See UP SWITCH INSPECTION [ET6A-EL].) (See UP SWITCH REMOVAL/INSTALLATION [ET6A-EL].) (See DOWN SWITCH INSPECTION [ET6A-EL].) (See DOWN SWITCH REMOVAL/INSTALLATION [ET6A-EL].)
13	Steering shift switch (See STEERING SHIFT SWITCH INSPECTION [ET6A-EL].) (See STEERING SHIFT SWITCH REMOVAL/INSTALLATION [ET6A-EL].)
