1.Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

2.Remove the tie-rod end. (See TIE-ROD END REPLACEMENT.)

3.Inspect the tie-rod end for damage and the boot for cracks.

am3zzw00023156

• If there is a malfunction, replace the tie-rod end. (See TIE-ROD END REPLACEMENT.)

4.Inspect the tie-rod end for excessive play.

• If there is a malfunction, replace the tie-rod end. (See TIE-ROD END REPLACEMENT.)

5.Rotate the ball joint of the tie-rod end 5 times.

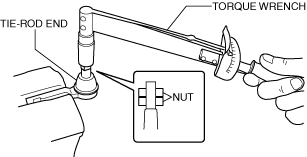

6.Install 2 nuts to the ball joint and measure the rotation torque of the tie-rod end using a torque wrench.

ac8wzw00001517

• If not within the standard, replace the tie-rod end. (See TIE-ROD END REPLACEMENT.)
