NOTHING INDICATED ON ACTIVE DRIVING DISPLAY [ACTIVE DRIVING DISPLAY]
NOTHING INDICATED ON ACTIVE DRIVING DISPLAY [ACTIVE DRIVING DISPLAY]
SM2336294
id0903m7031400
Outline
|
Description
|
• When the ignition is switched ON (engine off or on), nothing is indicated on the active driving display.
|
|
|
Possible cause
|
• Active driving display connector or terminal malfunction

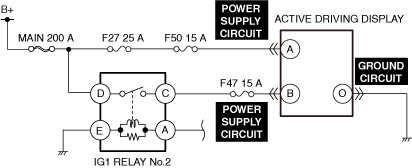

• Short to ground or open circuit in active driving display power supply circuit
• Open circuit in active driving display ground circuit
• Active driving display malfunction
|
|
 |
||
 |
 |
|
Diagnostic Procedure
|
Step |
Inspection |
Results |
Action |
|---|---|---|---|
|
1
|
VERIFY ALL SYSTEM DTCs
• Perform the DTC inspection. (See DTC INSPECTION.)
• Are any DTCs displayed?
|
Yes
|
Repair the malfunctioning location according to the applicable DTC troubleshooting.
|
|
No
|
Go to the next step.
|
||
|
2
|
INSPECT ACTIVE DRIVING DISPLAY CONNECTOR FOR MALFUNCTION
• Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.)
• Are the connector and terminal normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
||
|
3
|
INSPECT ACTIVE DRIVING DISPLAY POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT
• Inspect the power supply circuit for a short to ground and open circuit. (See CIRCUIT INSPECTION.)
• Is the circuit normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
||
|
4
|
INSPECT ACTIVE DRIVING DISPLAY GROUND CIRCUIT FOR OPEN CIRCUIT
• Inspect the ground circuit for open circuit. (See CIRCUIT INSPECTION.)
• Is the circuit normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
||
|
Repair completion verification
|
VERIFY THAT VEHICLE IS REPAIRED
• Install/connect the part removed/disconnected during the troubleshooting procedure.
• Has the malfunction symptom been eliminated?
|
Yes
|
Complete the symptom troubleshooting. (Explain contents of repair to customer)
|
|
No
|
Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.
If the CAN communication is normal, perform the diagnosis from Step 1.
• If the malfunction is not resolved, replace the active driving display. (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION [(US)].)
|
