SET PLATE REMOVAL/INSTALLATION
SET PLATE REMOVAL/INSTALLATION
SM2336338
id091000878900
1.Remove the rear under cover. (See REAR UNDER COVER REMOVAL/INSTALLATION.)

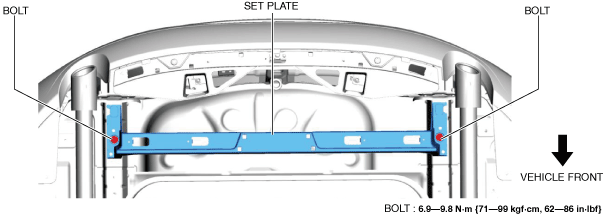

2.Remove the bolts.
am3zzw00023261
|

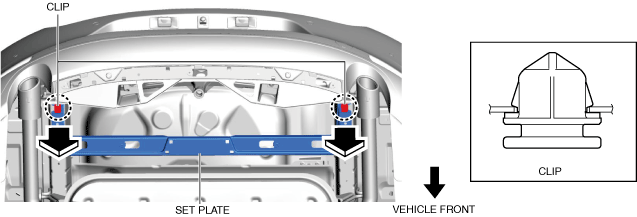

3.Pull the set plate in the direction of the arrows shown in the figure while detaching the clips.
am3zzw00023262
|
4.Install in the reverse order of removal.
