1.Fully lower the rear door glass.

2.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

3.Remove the following parts:

(1)Power window subswitch (rear) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

(2)Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(3)Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

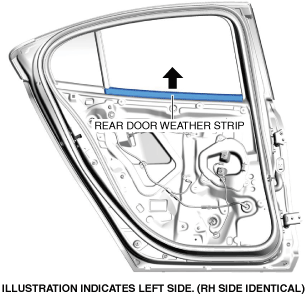

4.Remove the rear door weatherstrip in the direction of the arrow shown in the figure by pulling it upward.

am3zzw00024551

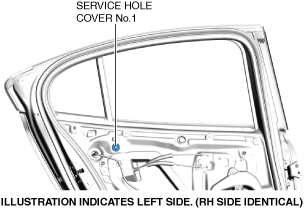

5.Remove service service hole cover No.1.

am3zzw00024552

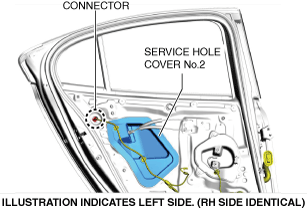

6.Disconnect the connector.

am3zzw00024553

Caution

• When removing the service hole cover, insert the remover tool so as not to damage the seal rubber.

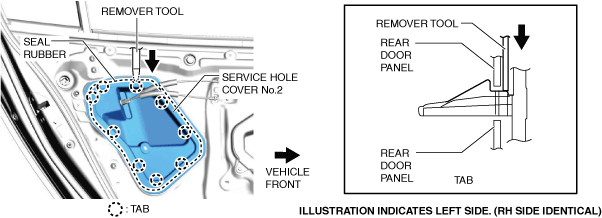

7.Insert a remover tool into the position shown in the figure, move it in the direction of the arrow, and detach the tabs from the rear door panel.

am3zzw00030367

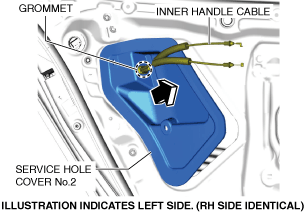

8.Remove the grommet.

am3zzw00029547

9.Move service hole cover No.2 in the direction of the arrow shown in the figure and remove it while pulling out the inner handle cable.

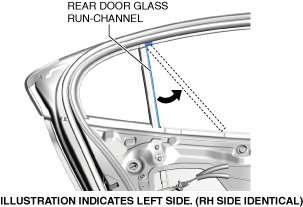

10.Partially peel back the rear door glass run-channel.

am3zzw00024556

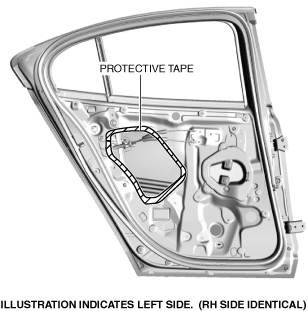

11.Apply protective tape to the edge part of the service hole cover No.2 installation hole to prevent injury.

am3zzw00024557

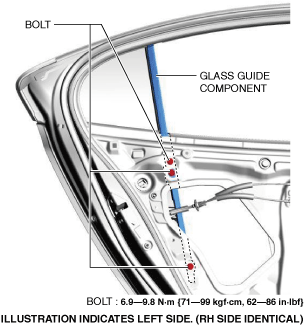

12.Remove the bolts.

am3zzw00029548

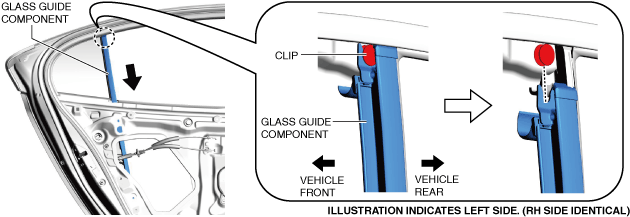

13.Move the glass guide component in the direction of the arrow shown in the figure and remove it from the clip.

am3zzw00024559

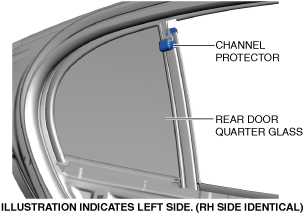

14.Remove the channel protector.

am3zzw00024560

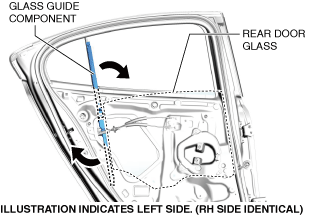

15.Pull the glass guide component in the direction of the arrows shown in the figure.

am3zzw00024561

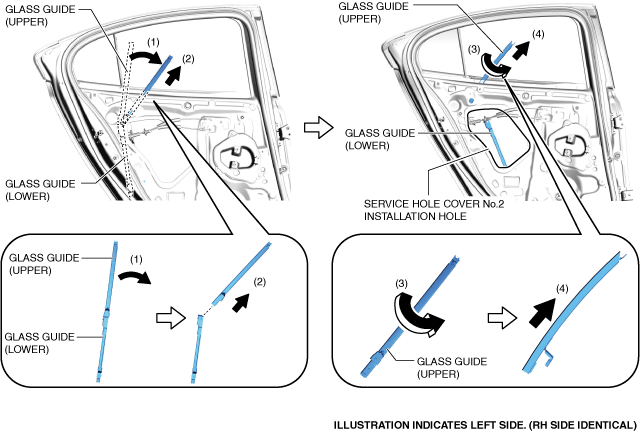

16.Move the glass guide (upper) in the order of arrows (1) and (2) shown in the figure and remove the glass guide (lower).

am3zzw00027876

17.Rotate the glass guide (upper) in the direction of arrow (3) shown in the figure.

18.Remove the glass guide (upper) in the direction of arrow (4) shown in the figure.

19.Pull out the glass guide (lower) from the service hole cover No.2 installation hole.

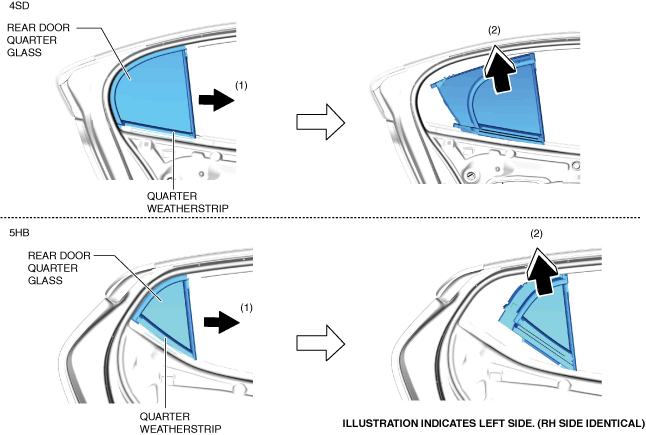

20.Slide the rear door quarter glass and quarter weatherstrip as a single unit in the direction of arrow (1) shown in the figure.

am3zzw00027702

21.Remove the rear door quarter glass and quarter weatherstrip as a single unit in the direction of arrow (2) shown in the figure.

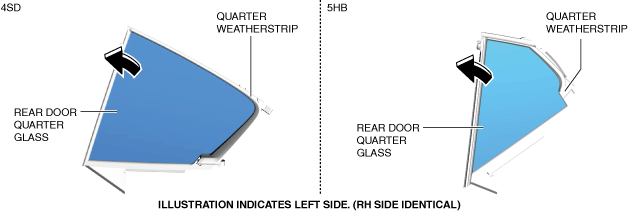

22.Peel back the quarter weatherstrip and remove the rear door quarter glass in the direction of the arrow shown in the figure.

am3zzw00027703

23.Install in the reverse order of removal. (See Glass Guide Installation Note.) (See Service Hole Cover No.2 Installation Note.)

Glass Guide Installation Note

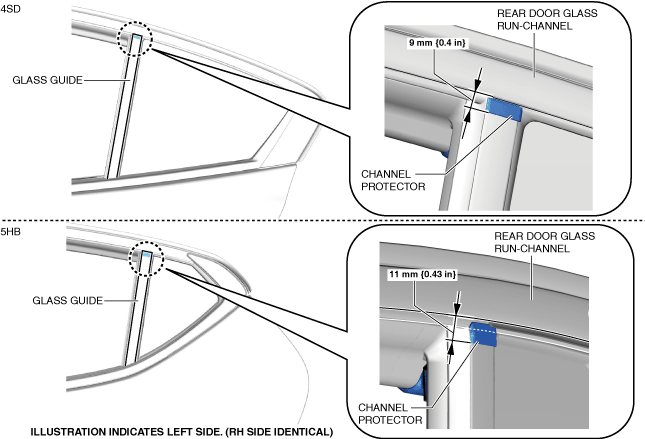

1. Install the glass guide to the position shown in the figure.

am3zzw00030368

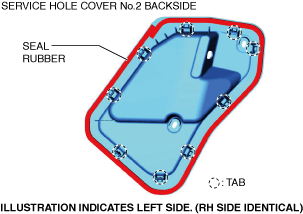

Service Hole Cover No.2 Installation Note

1. When installing the service hole cover No.2, verify that the seal rubber is not wet.

am3zzw00030369
