Note

• The position memory switch is integrated with the cluster switch No.2.

• For the position memory switch removal/installation, refer to CLUSTER SWITCH REMOVAL/INSTALLATION. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

1.Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

2.Remove the position memory switch. (See POSITION MEMORY SWITCH REMOVAL/INSTALLATION.)

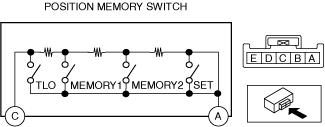

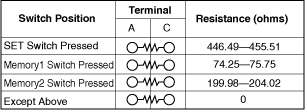

3. Verify that the resistance and continuity between the position memory switch terminals is as indicated in the table.

• If not as indicated in the table, replace the position memory switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION)

am3zzw00032522

am3zzw00027719
