REAR SEAT HINGE REMOVAL/INSTALLATION
REAR SEAT HINGE REMOVAL/INSTALLATION
SM2336417
id091300999100
1.Remove the following parts:
- (1)Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (2)Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)
- (3)Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (4)Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

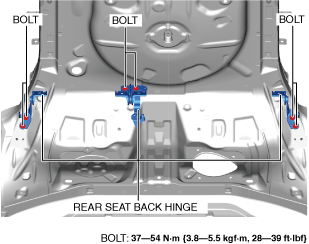

2.Remove the bolts.
am3zzw00024590
|
3.Remove the rear seat hinge.
4.Install in the reverse order of removal.
