id091400511100

Driver’s side

1.Fully close the front door glass.

2.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

3.Remove the following parts:

(1)Front door speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

(2)Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(3)Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

(4)Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION [(US)].)

(5)Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

4.Disconnect the connector.

am3zzw00022105

Caution

• When removing the service hole cover, insert the remover tool so as not to damage the seal rubber.

5.Detach the service hole cover tabs from the body using a remover tool.

am3zzw00030560

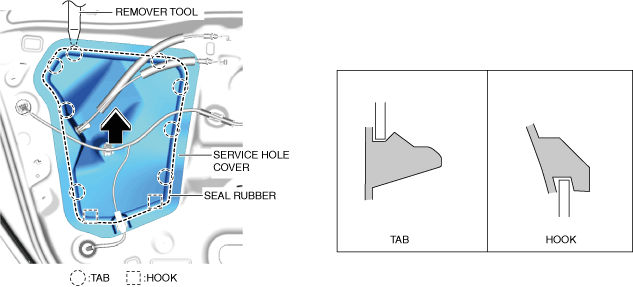

6.Lift the service hole cover in the direction of the arrow shown in the figure and detach the service hole cover hooks from the body.

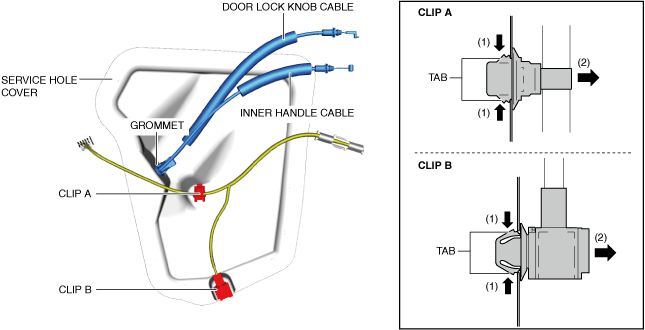

7.Remove the clip A and B.

am3zzw00028052

8.Remove the grommet.

9.Pull the door lock knob cable and the inner handle cable from the service hole cover.

10.Remove the service hole cover. (See Service hole cover installation note.)

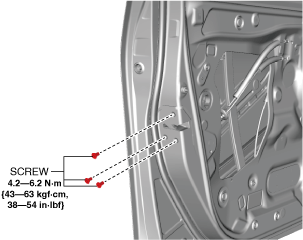

11.Remove the screws.

am3zzw00022108

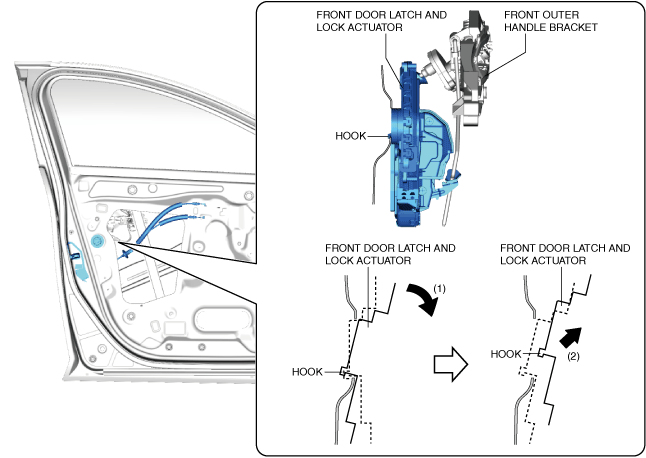

12.Tilt the front door latch and lock actuator in the direction of arrow (1) shown in the figure, lift it in the direction of arrow (2), and then detach the front door latch and lock actuator hook from the body.

am3zzw00022109

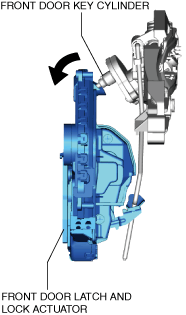

13.Tilt the front door latch and lock actuator in the direction of the arrow shown in the figure and pull out the front door key cylinder from the front door latch and lock actuator.

am3zzw00022110

14.Move the front door latch and lock actuator down in the direction of the arrow shown in the figure and pull out the rod from the rod holder.

am3zzw00022111

15.Remove the front door latch and lock actuator. (See Front door latch and lock actuator installation note.)

16.Install in the reverse order of removal.

Front door latch and lock actuator installation note

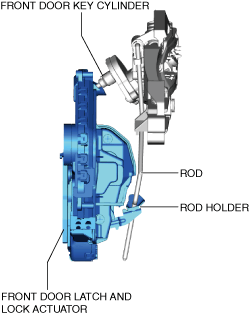

1.Verify that the front door key cylinder is assembled to the front door latch and lock actuator.

am3zzw00022112

2.Move the rod back and forth and verify that it is inserted into the rod holder hole.

Service hole cover installation note

• When installing the service hole cover, verify that the seal rubber is not wet.

am3zzw00031181

• If the seal rubber or a tab is damaged, replace the service hole cover.

Passenger’s side

1.Fully close the front door glass.

2.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

3.Remove the following parts:

(1)Front door speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

(2)Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(3)Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

(4)Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION [(US)].)

(5)Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

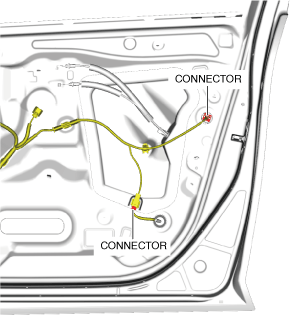

4.Disconnect the connector.

am3zzw00022113

Caution

• When removing the service hole cover, insert the remover tool so as not to damage the seal rubber.

5.Detach the service hole cover tabs from the body using a remover tool.

am3zzw00030561

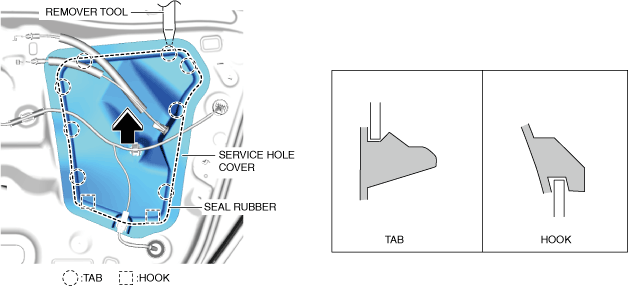

6.Detach all the service hole cover tabs from the body, lift the service hole cover in the direction of the arrow shown in the figure, and then detach the service hole cover hooks from the body.

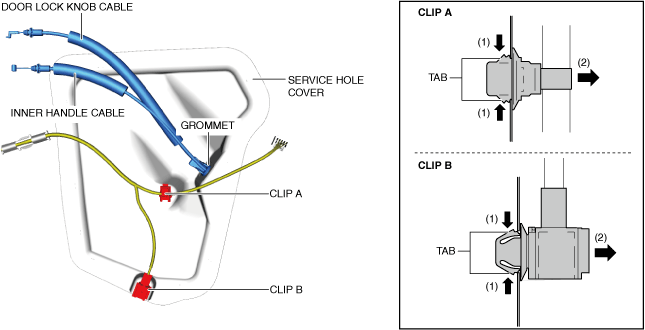

7.Remove the clip A and B.

am3zzw00028054

8.Remove the grommet.

9.Pull the door lock knob cable and the inner handle cable from the service hole cover.

10.Remove the service hole cover. (See Service hole cover installation note.)

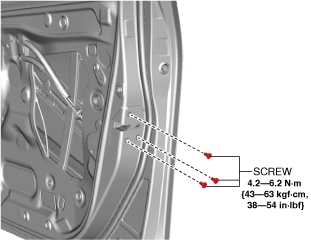

11.Remove the screws.

am3zzw00022116

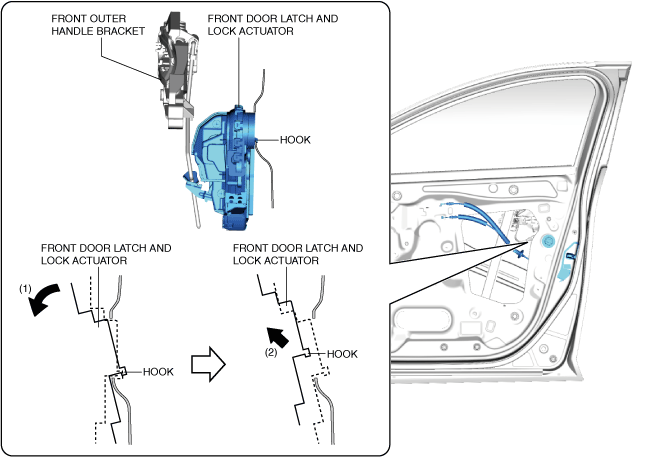

12.Tilt the front door latch and lock actuator in the direction of arrow (1) shown in the figure, lift it in the direction of arrow (2), and then detach the front door latch and lock actuator hook from the body.

am3zzw00022117

13.Move the front door latch and lock actuator down in the direction of the arrow shown in the figure and pull out the rod from the rod holder.

am3zzw00022118

14.Remove the front door latch and lock actuator. (See Front door latch and lock actuator installation note.)

15.Install in the reverse order of removal.

Front door latch and lock actuator installation note

• Move the rod back and forth and verify that it is inserted into the rod holder hole.

am3zzw00022119

Service hole cover installation note

• When installing the service hole cover, verify that the seal rubber is not wet.

am3zzw00031182

• If the seal rubber or a tab is damaged, replace the service hole cover.
