1.Fully close the rear door glass.

2.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

3.Remove the following parts:

(1)Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

(2)Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(3)Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

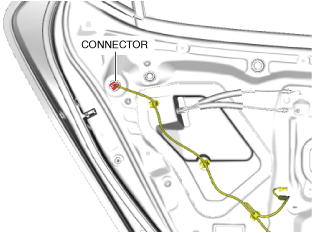

4.Disconnect the connector.

am3zzw00025944

Caution

• When removing the service hole cover, insert the remover tool so as not to damage the seal rubber.

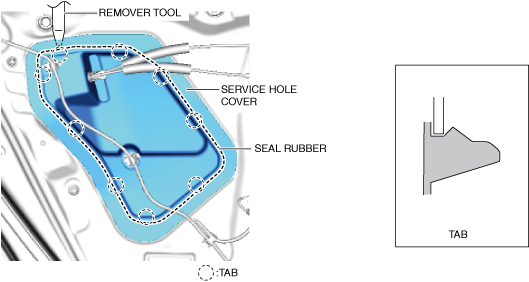

5.Detach the service hole cover tabs from the body using a remover tool.

am3zzw00028055

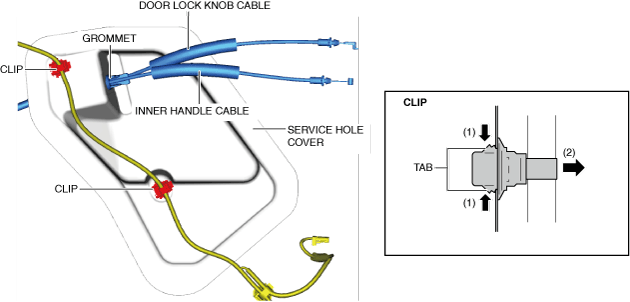

6.Remove the clips.

am3zzw00028056

7.Remove the grommet.

8.Pull the door lock knob cable and the inner handle cable from the service hole cover.

9.Remove the service hole cover. (See Service Hole Cover Installation Note.)

10.Remove the service hole cover.

am3zzw00025947

11.Remove the bolts.

am3zzw00025948

12.Remove the glass guide (lower).

13.Remove the screws.

am3zzw00022120

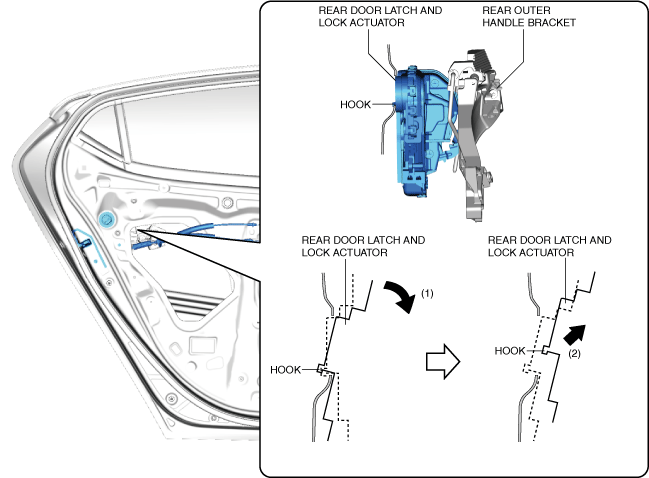

14.Tilt the rear door latch and lock actuator in the direction of arrow (1) shown in the figure and lift it in the direction of arrow (2) to detach the hook of the rear door latch and lock actuator.

am3zzw00022121

15.Move the rear door latch and lock actuator down in the direction of arrow shown in the figure to remove the rod from the rod holder.

am3zzw00022122

16.Remove the rear door latch and lock actuator. (See Rear Outer Handle Bracket Installation Note.)

17.Install in the reverse order of removal.

Rear Outer Handle Bracket Installation Note

• To assure that the rod is inserted into the rod holder hole, verify that the there is no excessive play.

am3zzw00022123

Service Hole Cover Installation Note

• When installing the service hole cover, verify that the seal rubber is not wet.

am3zzw00031179
