1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

2.Remove the following parts:

(1)Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(4)Door lock switch (liftgate) (with door lock switch (liftgate)) (See DOOR LOCK SWITCH REMOVAL/INSTALLATION [(US)].)

(5)Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

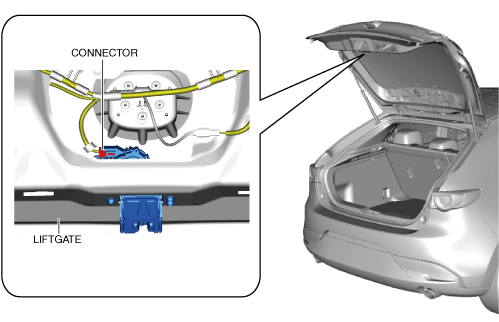

3.Disconnect the connector.

am3zzw00022171

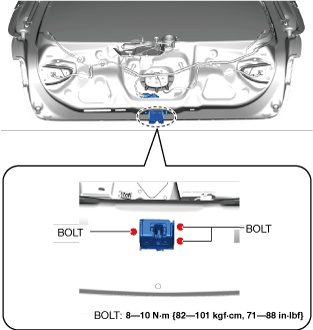

4.Remove the bolts.

am3zzw00022172

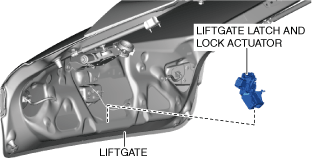

5.Remove the liftgate latch and lock actuator from the liftgate.

am3zzw00022173

6.Install in the reverse order of removal.
