UPPER FACE DISASSEMBLY/ASSEMBLY
UPPER FACE DISASSEMBLY/ASSEMBLY
SM2336505
id091600882500
Replacement part
|
Rivet
Quantity: 14
Location of use: Upper face
|

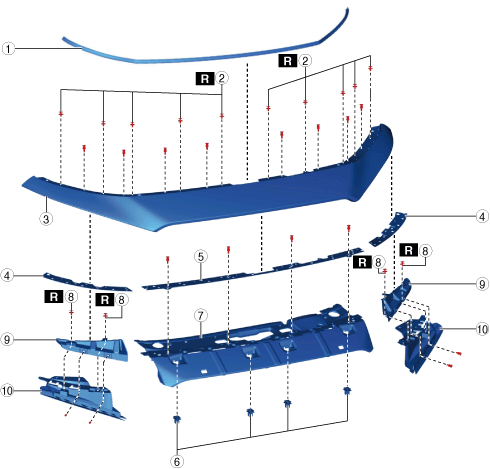

1.Disassemble in the order indicated in the table.
am3zzw00027651
|
|
1
|
Parting seal weatherstrip
|
|
2
|
Rivet A
(See Rivet Removal Note.)
|
|
3
|
Upper grille
|
|
4
|
Set plate A
|
|
5
|
Set plate B
|
|
6
|
Locator pin
|
|
7
|
Bracket A
|
|
8
|
Rivet B
(See Rivet Removal Note.)
|
|
9
|
Bracket B
|
|
10
|
Bracket C
|
2.Assemble in the reverse order of disassembly.
Rivet Removal Note
-
Caution
-
• If an inappropriate drill diameter is used, the upper face may be damaged.
1.When removing the rivet, perform the following procedure:

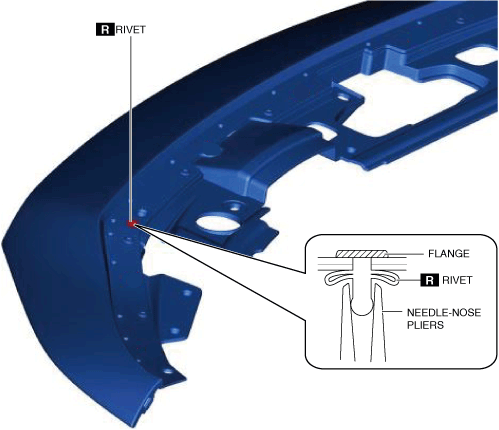

- (1)Secure the rivet pin from the upper face inside using needle-nose pliers.
-
am3zzw00027652
- (2)Use the following drill diameter.
-
-
Drill diameter:
-
Rivet A: 4.1 mm {0.16 in}Rivet B: 4.8 mm {0.19 in}
-

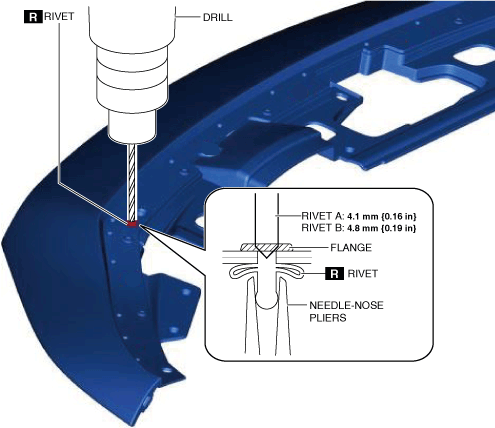

- (3)Remove the rivet flange using a drill and remove the rivet.
-
am3zzw00027653
- (4)Remove any rivet shavings from the upper face.
