Caution

• If the installation work for the ornament is performed without cleaning and degreasing the ornament installation surface, the ornament could fall off after installation. Before installing the ornament, clean and degrease the ornament and the ornament installation area.

1.Degrease the adhesion area of the ornament.

2.Warm the ornament installation area to between 15 °C {59 °F} and 40 °C {104 °F} using a heat gun.

am3zzw00023977

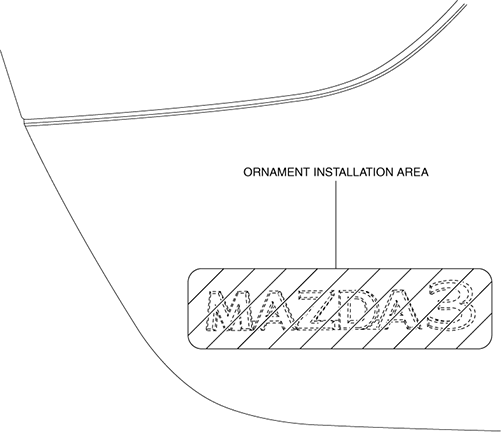

3.Install the ornament to the position shown in the figure.

4SD (LH)

am3zzw00023978

4SD (LH) (AWD)

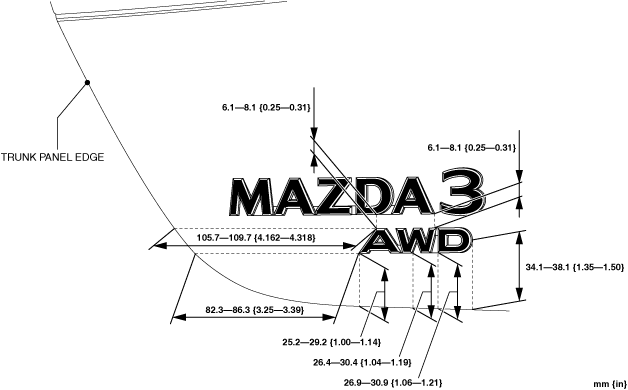

am3zzw00034610

4SD (RH)

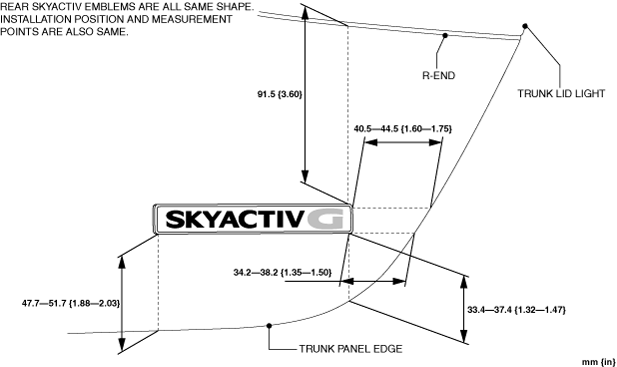

am3zzw00029323

5HB (LH)

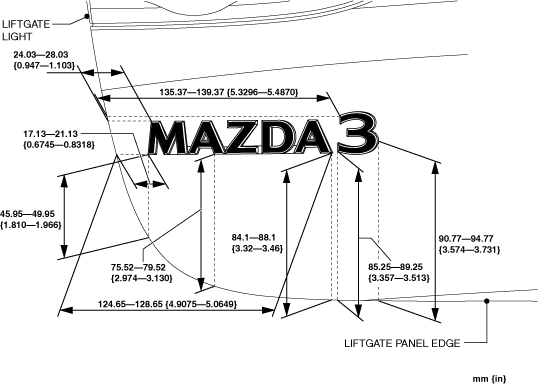

am3zzw00034611

5HB (LH) (AWD)

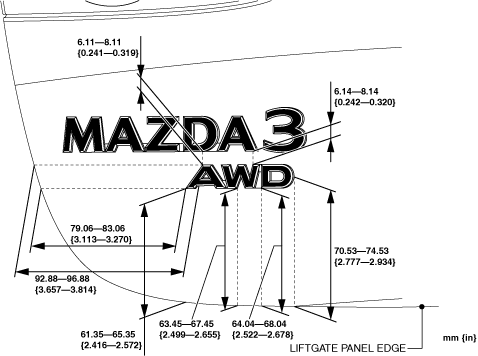

am3zzw00034612

5HB (RH)

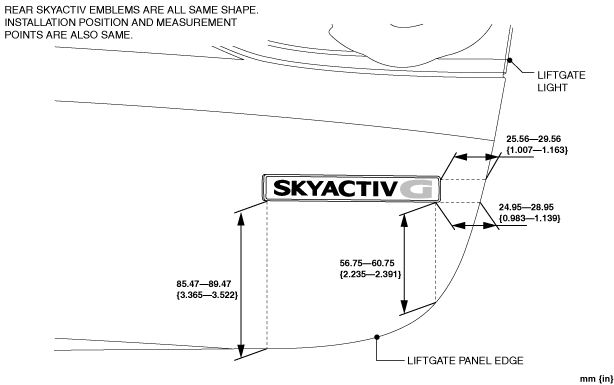

am3zzw00034613

4.Press the ornament with a force of 49 N {5.0 kgf, 11 lbf} or more so that the clearance between the ornament and the adhesion area of the ornament is 1.1 mm {0.043 in} or less.
