1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

2.Remove the vanity mirror illumination. (See VANITY MIRROR ILLUMINATION REMOVAL/INSTALLATION.)

3.Apply battery positive voltage to vanity mirror illumination terminal A, and connect the ground to terminal C.

am3zzw00030831

• If not as indicated in the table, replace the vanity mirror illumination. (See VANITY MIRROR ILLUMINATION REMOVAL/INSTALLATION.)

4.Remove the sunvisor. (See SUNVISOR REMOVAL/INSTALLATION.)

5.Verify that the vanity mirror position.

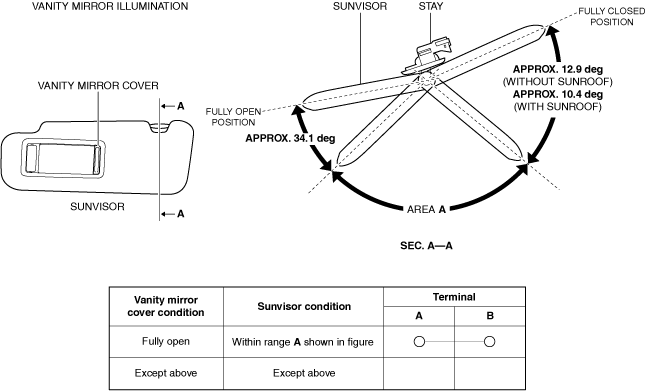

am3zzw00029248

• If not as indicated in the table, replace the sunvisor. (See SUNVISOR REMOVAL/INSTALLATION.)
