FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY [(US)]
FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY [(US)]
SM2336606
id0918008160x1
1.Disassemble in the order shown in the figure.

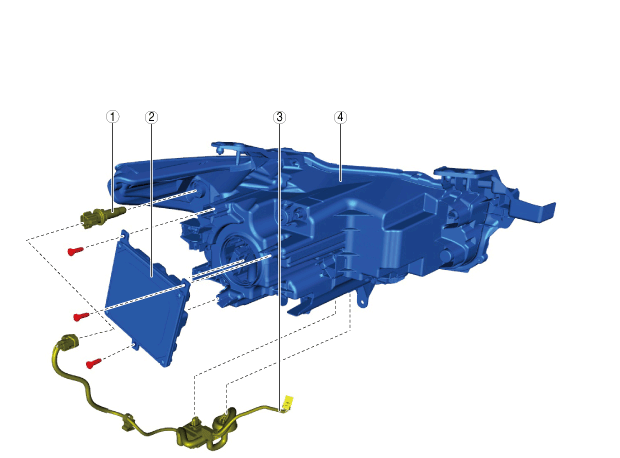

With headlight manual leveling system
am3zzw00032517
|
|
1
|
Parking light/Front side marker light bulb
|
|
2
|
Light control module
|
|
3
|
Short cord
(See Short Cord Removal Note.)
|
|
4
|
Front combination light
|

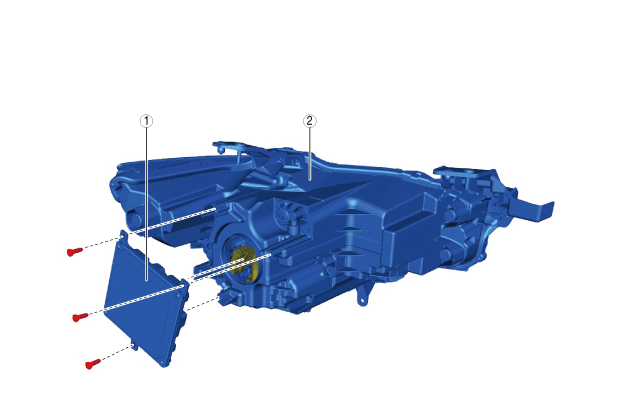

Without headlight manual leveling system
am3zzw00032518
|
|
1
|
Light control module
|
|
2
|
Front combination light
|
2.Assemble in the reverse order of disassembly.

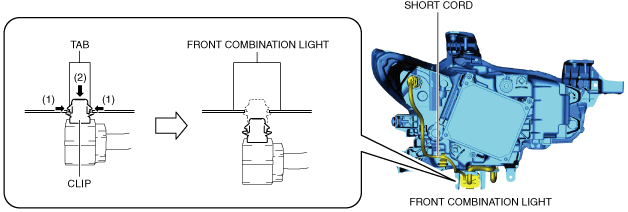

Short Cord Removal Note
1.While pressing the clip tabs in the direction of arrows (1) shown in the figure, press the clip in the direction of arrow (2) to detach the clip tabs from the front combination light.
am3zzw00027124
|
2.Remove the short cord.
