1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

2.Remove the following parts:

(1)Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(2)Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(3)Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION [(US)].)

(4)Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(5)Trunk side upper trim (LH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

3.Partially peel the trunk side trim (LH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [(US)].)

4.Remove the electrical supply unit (ESU). (See ELECTRICAL SUPPLY UNIT (ESU) REMOVAL/INSTALLATION.)

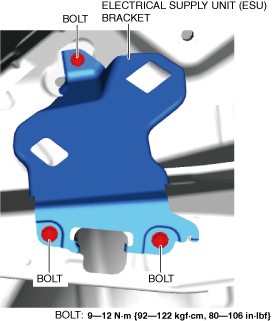

5.Remove the bolts.

am3zzw00027946

6.Remove the electrical supply unit (ESU) bracket.

7.Install in the reverse order of removal.
