LANE DEPARTURE WARNING SYSTEM (LDWS) LOCATION INDEX

LANE DEPARTURE WARNING SYSTEM (LDWS) LOCATION INDEX

SM2337149

id152000000800

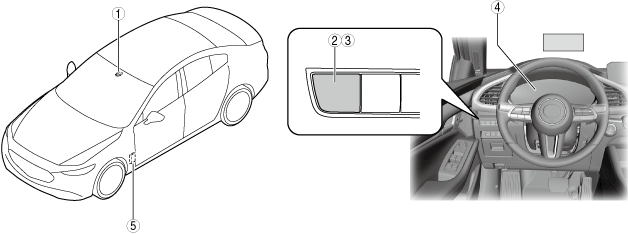

am3zzw00030687

1	Forward sensing camera (FSC) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.) (See FORWARD SENSING CAMERA (FSC) INSPECTION.) (See FORWARD SENSING CAMERA (FSC) AIMING.) (See FORWARD SENSING CAMERA (FSC) SYSTEM OPERATION RECORD.)
2	i-ACTIVSENSE switch (See i-ACTIVSENSE SWITCH REMOVAL/INSTALLATION.) (See i-ACTIVSENSE SWITCH INSPECTION.)
3	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION [(US)].)
4	Body control module (BCM) (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) (See BODY CONTROL MODULE (BCM) INSPECTION [(US)].) (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION [(US)].)
