FRONT CAMERA REMOVAL/INSTALLATION
FRONT CAMERA REMOVAL/INSTALLATION
SM2337169
id152000009700
1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)
2.Remove the upper face. (See UPPER FACE REMOVAL/INSTALLATION [(US)].)
3.Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION [(US)].)

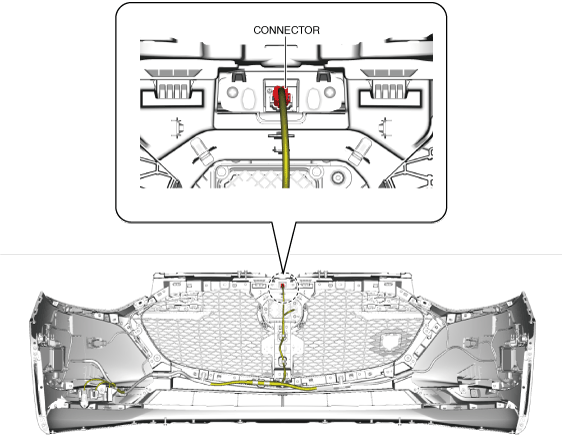

4.Disconnect the connector.
am3zzw00028796
|

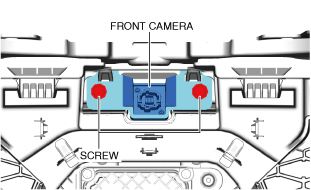

5.Remove the screws.
am3zzw00028797
|
6.Remove the front camera.
7.Install in the reverse order of removal.
8.Perform the front camera aiming. (See 360°VIEW MONITOR SYSTEM AIMING.)
9.Perform the front side radar sensor aiming. (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING.)
10.Perform the front radar sensor aiming. (See FRONT RADAR SENSOR AIMING.)
