Special Service Tool (SST)

49 W034 201 Dust boot installer

1.Drain the differential oil into a container. (See DIFFERENTIAL OIL REPLACEMENT.)

2.Remove the coupling component. (See COUPLING COMPONENT REMOVAL/INSTALLATION [(US)].)

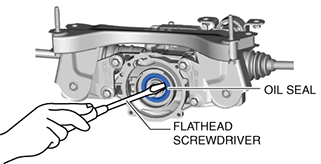

3.Remove the oil seal from the differential carrier using a screwdriver or similar tool.

am3zzw00031462

4.Apply differential oil to the new oil seal lip.

5.Install the new oil seal to the differential carrier using the SST.

aaxjjw00026331

Note

• Install the oil seal at a straight angle.

6.Install the coupling component. (See COUPLING COMPONENT REMOVAL/INSTALLATION [(US)].)

7.Add the specified differential oil from the filler plug. (See DIFFERENTIAL OIL REPLACEMENT.)
