Rear Differential Mount Rubber (Front)

1.Support the rear differential component using a jack.

am3zzw00031463

2.Remove in the order shown in the figure.

3.Install in the reverse order of removal.

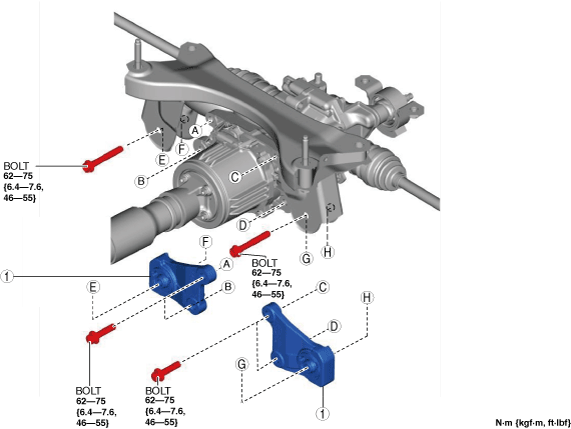

am3zzw00031464

Rear Differential Mount Rubber (Front) Installation Note

1.Temporarily tighten bolts A and B.

am3zzw00031465

2.Remove the transmission jack.

3.Shake the rear differential forward and back/left and right to improve the installation fit of the rear differential.

4.Completely tighten bolts in the order of A and B.

Rear Differential Mount Rubber (Rear)

1.Support the rear differential component using a transmission jack.

am3zzw00031463

2.Remove in the order shown in the figure.

3.Install in the reverse order of removal.

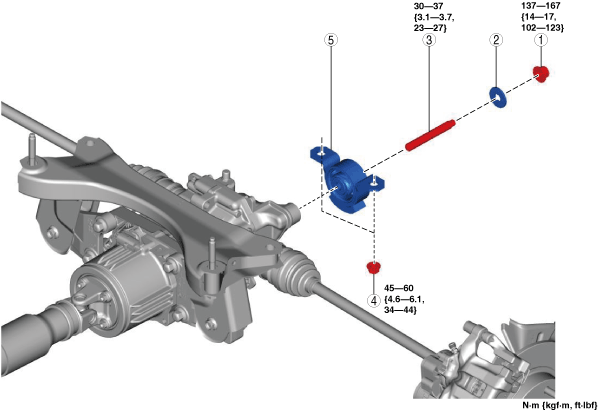

am3zzw00031466

Stud Bolt, Washer, And Nut Installation Note

1.Temporarily tighten the stud bolt, washer and nut.

2.Remove the transmission jack.

3.Shake the rear differential forward and back/left and right to improve the installation fit of the rear differential.

4.Tighten the stud bolt and nut completely.
