REAR OIL SEAL REPLACEMENT [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))]
REAR OIL SEAL REPLACEMENT [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))]
SM2565606
id0110u0800900
Special Service Tool (SST)
|
49 E033 101
Dust cover installer [SKYACTIV-G 2.0]
|
 |
49 S033 101
Dust cover installer [SKYACTIV-G 2.5]
|
 |
Replacement Part
|
Rear oil seal
Quantity: 1
Location of use: Cylinder block
|
Oil and Chemical Type
|
Engine oil
Type: Recommended oil
|
1.Remove the transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [C66M-R (SKYACTIV-G 2.0, SKYACTIV-G 2.5) (US)] (MTX).) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5) (US)] (ATX).)
2.Remove the flywheel (MTX) or the drive plate (ATX). (See CLUTCH UNIT REMOVAL/INSTALLATION [C66M-R] (MTX).) (See DRIVE PLATE REMOVAL/INSTALLATION [ET6A-EL (US)] (ATX).)
3.Remove in the order indicated in the table.
4.Install in the reverse order of removal.
am3zzw00024910
|
|
1
|
Rear oil seal
(See Rear Oil Seal Removal Note.)
|
Rear Oil Seal Removal Note
1.Cut the rear oil seal lip using a utility knife.
2.Remove the rear oil seal using a flathead screwdriver with the tip protected by a clean cloth to prevent damage to the crankshaft.
am3zzw00024911
|
Rear Oil Seal Installation Note
1.Apply clean engine oil to the inner surface of a new rear oil seal.
2.Insert the rear oil seal into the cylinder block by hand.

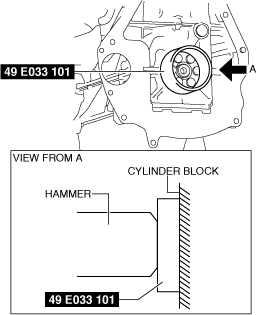

3.Tap the rear oil seal in evenly using the SST and a hammer.
SKYACTIV-G 2.0
am3zzw00024912
|
SKYACTIV-G 2.5
bpe1ze00000056
|
am3uuw00008836
|
-
Rear oil seal press on amount
-
0—0.5 mm {0—0.019 in} from edge surface of cylinder block
