AUTOMATIC TRANSAXLE LOCATION INDEX [EV6A-EL, EV6AX-EL]

AUTOMATIC TRANSAXLE LOCATION INDEX [EV6A-EL, EV6AX-EL]

SM2566195

id0517o3118200

am3zzw00022749

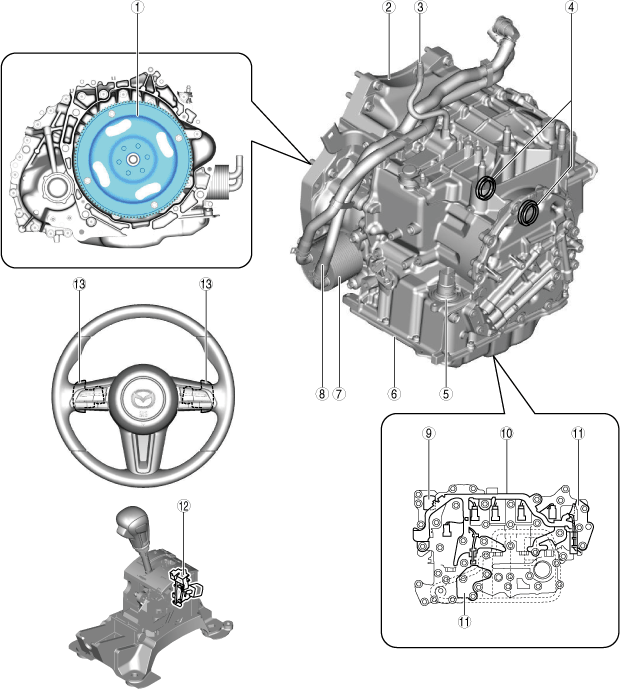

1	Drive plate (See DRIVE PLATE REMOVAL/INSTALLATION [EV6A-EL, EV6AX-EL].)
2	Automatic transaxle (See MECHANICAL SYSTEM TEST [EV6A-EL, EV6AX-EL].) (See ROAD TEST [EV6A-EL, EV6AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION [EV6A-EL, EV6AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [EV6A-EL, EV6AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT [EV6A-EL, EV6AX-EL].) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EV6A-EL].) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EV6AX-EL].) (See INITIAL LEARNING [EV6A-EL, EV6AX-EL].)
3	Breather hose (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EV6A-EL].) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EV6AX-EL].)
4	Oil seal (differential) (See OIL SEAL (DIFFERENTIAL) REPLACEMENT [EV6A-EL, EV6AX-EL].)
5	Oil seal (control valve body) (See OIL SEAL (CONTROL VALVE BODY) REPLACEMENT [EV6A-EL, EV6AX-EL].)
6	Control valve body (See CONTROL VALVE BODY REMOVAL/INSTALLATION [EV6A-EL, EV6AX-EL].) (See TCM CONFIGURATION [EV6A-EL, EV6AX-EL].)
7	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [EV6A-EL, EV6AX-EL].)
8	Water hose (See OIL COOLER REMOVAL/INSTALLATION [EV6A-EL, EV6AX-EL].)
9	ON/OFF solenoid (See ON/OFF SOLENOID REMOVAL/INSTALLATION [EV6A-EL, EV6AX-EL].)
10	Coupler component (See COUPLER COMPONENT REMOVAL/INSTALLATION [EV6A-EL, EV6AX-EL].)
11	Oil pressure switch (See OIL PRESSURE SWITCH REMOVAL/INSTALLATION [EV6A-EL, EV6AX-EL].)
12	M position switch/ up switch/ down switch (See M POSITION SWITCH INSPECTION [EV6A-EL, EV6AX-EL].) (See M POSITION SWITCH REMOVAL/INSTALLATION [EV6A-EL, EV6AX-EL].) (See UP SWITCH REMOVAL/INSTALLATION [EV6A-EL, EV6AX-EL].) (See DOWN SWITCH REMOVAL/INSTALLATION [EV6A-EL, EV6AX-EL].)
13	Steering shift switch (See STEERING SHIFT SWITCH REMOVAL/INSTALLATION [EV6A-EL, EV6AX-EL].)
