STEERING SHIFT SWITCH INSPECTION [EV6A-EL, EV6AX-EL]
STEERING SHIFT SWITCH INSPECTION [EV6A-EL, EV6AX-EL]
SM2566207
id0517o3600700
Up Switch
1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

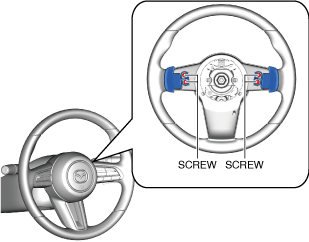

2.Remove the screw.
am3zzw00021685
|

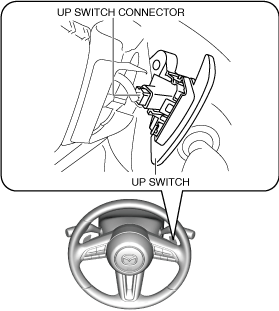

3.Disconnect the up switch connector.
am3zzw00034652
|
4.Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)
5.Verify that the continuity between up switch component terminals A and B.
am3zzw00034563
|
-
• If there is any malfunction, replace the up switch.
Up switch specification
|
Test condition |
Continuity |
|---|---|
|
Up switch is operated (Up switch is pulled outward)
|
Continuity
|
|
Up switch is not operated (Up switch is not pulled outward)
|
No continuity
|
Down Switch
1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)
2.Remove the screw.
am3zzw00021685
|

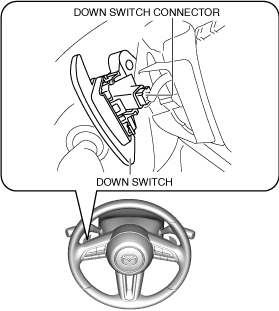

3.Disconnect the down switch connector.
am3zzw00026488
|
4.Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)
5.Verify that the continuity between down switch component terminals A and B.
am3zzw00034563
|
-
• If there is any malfunction, replace the down switch. (See STEERING SHIFT SWITCH REMOVAL/INSTALLATION [EV6A-EL, EV6AX-EL].)
Down switch specification
|
Test condition |
Continuity |
|---|---|
|
Down switch is operated (switch is pulled outward)
|
Continuity
|
|
Down switch is not operated (switch is not pulled outward)
|
No continuity
|
