id081100802000

Warning

• The side air bag sensor is attached to the lower part of the B-pillar. When working around the B-pillar, disconnect the negative battery terminal or work carefully, avoiding excessive impact to the lower part of the B-pillar.

1.Switch the ignition off.

2.Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

3.Set the front seat belt adjuster to the lowest position.

4.Remove the following parts:

(1)B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(2)Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

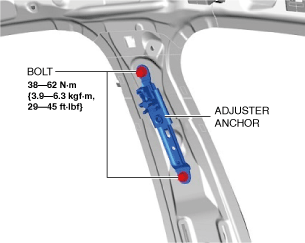

5.Remove the bolt.

am3zzw00031992

6.Remove the adjuster anchor.

7.Install in the reverse order of removal. (See Bolt Installation Note.)

Bolt Installation Note

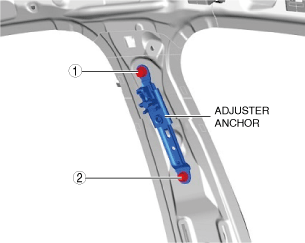

1.Tighten the bolts in the order shown in the figure.

am3zzw00034822
