FUEL-FILLER LID LOCK ACTUATOR MANUAL RELEASE PROCEDURE [(US)]
FUEL-FILLER LID LOCK ACTUATOR MANUAL RELEASE PROCEDURE [(US)]
SM2566407
id0914007001x1
-
Note
-
• If the fuel-filler lid cannot be opened due to a discharged battery or malfunctions in the electrical system, open the fuel-filler lid using the following procedure.
4SD
Without fuel-filler lid opener cable
1.Remove the following parts:
- (1)Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
- (2)Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION [(US)].)
- (3)Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
2.Partially peel the trunk side trim (LH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [(US)].)
3.Remove the trunk side insulator (LH). (See TRUNK SIDE INSULATOR REMOVAL/INSTALLATION.)

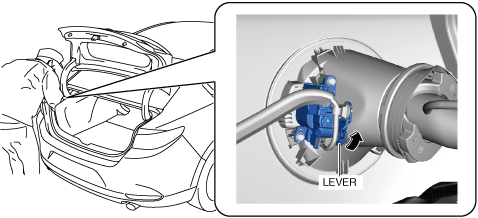

4.Move the fuel-filler lid actuator lever in the direction of the arrow shown in the figure.
|
With fuel-filler lid opener cable
1.Remove the following parts:
- (1)Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
- (2)Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION [(US)].)
- (3)Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
2.Partially peel the trunk side trim (LH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [(US)].)

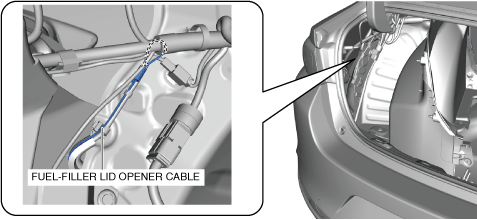

3.Pull the fuel-filler lid opener cable and open the fuel-filler lid.
|
5HB
1.Remove the following parts:
- (1)Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)
- (2)Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
- (3)Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION [(US)].)
- (4)Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (5)Trunk side upper trim (LH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
2.Partially peel the trunk side trim (LH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [(US)].)
3.Remove the trunk side insulator (LH). (See TRUNK SIDE INSULATOR REMOVAL/INSTALLATION.)

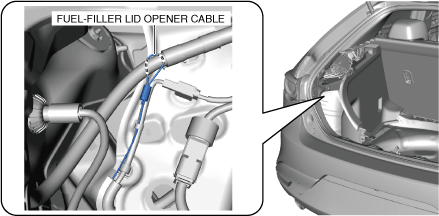

4.Pull the fuel-filler lid opener cable and open the fuel-filler lid.
|
