id0912009110x1

1.Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

2.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

3.Remove the following parts:

(1)Front door speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

(2)Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(3)Power window main switch (to remove from driver’s side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

(4)Power window subswitch (front) (to remove from passenger’s side) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

(5)Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION [(US)].)

(6)Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

(7)Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

(8)Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION.)

(9)Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION.)

(10)Front door garnish (See FRONT DOOR GARNISH REMOVAL/INSTALLATION.)

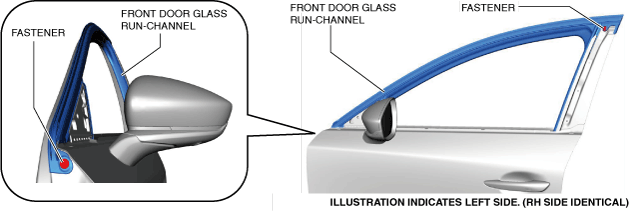

4.Remove the fasteners.

am3uuw00015301

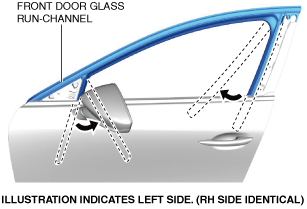

5.Partially peel back the front door glass run-channel.

am3uuw00015303

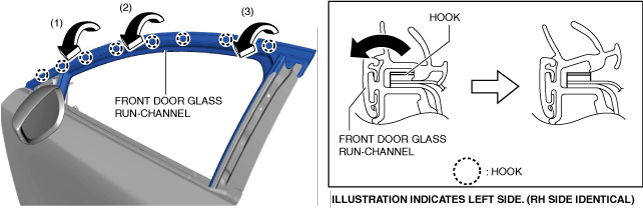

6.Move the front door glass run-channel in the order of arrows (1), (2), and (3) shown in the figure and remove it from the front door hooks.

am3zzw00027704

7.Remove the front door glass run-channel.

8.Install in the reverse order of removal.

9.Perform the power window system initialization procedure. (with auto open/auto close function) (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE.)
