SEAT WARMER CONTROL UNIT REMOVAL/INSTALLATION [(US)]
SEAT WARMER CONTROL UNIT REMOVAL/INSTALLATION [(US)]
SM2763811
id0913009775x1
With Position Memory System
• The seat warmer control unit is integrated with the position memory control module. When replacing the seat warmer control unit, refer to [POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION]. (See POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION [(US)].)
Without Position Memory System
1.Remove the front seat installation bolts. (See FRONT SEAT REMOVAL/INSTALLATION [(US)].)
2.Remove the front seat belt lower anchor.(See FRONT SEAT BELT REMOVAL/INSTALLATION.)
3.Perform the following procedure.
- (1)Switch the ignition off.
- (2)Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)
4.Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION [(US)].)

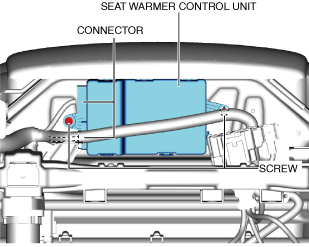

5.Disconnect the seat warmer control unit connector.
am3zzw00034648
|
6.Remove the screws.
7.Remove the seat warmer control unit.
8.Install in the reverse order of removal.
