Caution

• Be careful not to deform the pipe when cutting it. If the pipe is deformed, it may not be possible to install the new tailpipe correctly.

• Because the pipe is deformed if it is tightened using a U-shaped bolt, it may not be possible to install it correctly when reassembling. Therefore, if a U-shaped bolt has been already connected, replace the main silencer as a single unit.

1.Remove the main silencer.(See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))].)

2.Cut the tailpipe at the position shown in the figure.

4SD

am3zzw00036027

5HB

am3zzw00036047

3.Remove burrs from the pipe cut surface (main silencer side) using a file.

4.Verify if the pipe is deformed.

― If the pipe is deformed, repair it using a hammer as shown in the figure.

am3zzw00036029

5.Install the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))].)

Warning

• Use silicone sealant with a heat-resistant temperature of 800 °C {1472 °F} or more. If silicone sealant with low heat-resistant temperature is used, it could ignite due to the heat of the main silencer.

6.Apply silicone sealant to the inner surface of the shaded area shown in the figure.

am3zzw00036030

7.Pass the main silencer pipe through a U-shaped bolt.

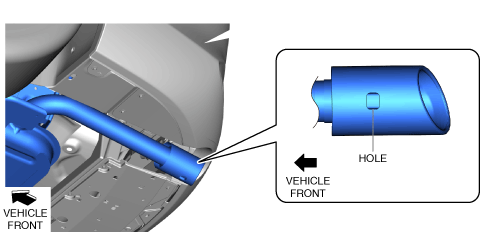

8.Assemble the tailpipe with the hole shown in the figure facing down.

am3zzw00036031

Caution

• Do not loosen the U-shaped bolt after tightening it. If it is loosened, the specified torque cannot be attained even if it is tightened to the specified value for the bolt projection allowance after tightening.

• Tighten the U-shaped bolt in three or four steps, left and right equally, to prevent clamp deformation.

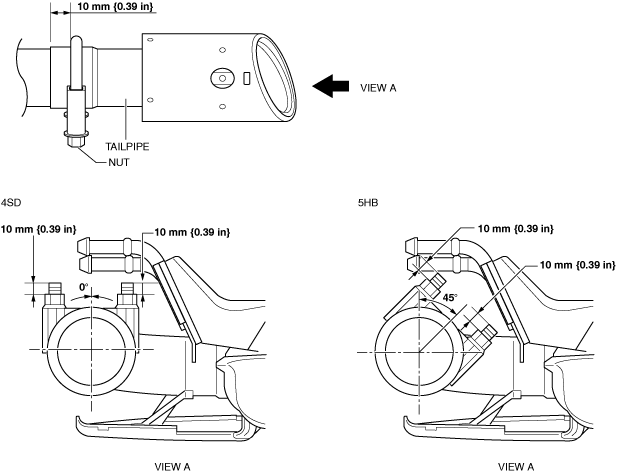

9.Install the U-shaped bolt to the tailpipe as shown in the figure.

am3zzw00036289

10.Tighten the U-shaped bolt.
