FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION [(US)]

FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION [(US)]

SM2789490


id0913009117x1

Replacement part

Band
Quantity: With power seat system (6)
Without power seat system (4)
Location of use: Front seat cushion frame
Warning
• Handling a seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling a front seat equipped with a side air bag. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM – US/CANADA SPEC.].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM – US/CANADA SPEC.].) (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM – MEXICO SPEC.].) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM – MEXICO SPEC.].)
• If the sliding mechanisms on both sides are not locked after assembling the front seat, it may move unexpectedly while the vehicle is driven, which could result in serious injury. After assembling the front seat, try moving it back and forth to verify that the sliding mechanism on both sides are locked. (Manual seat)
Caution
• After the front seat has been removed, if the slider lever is operated and the front seat is reinstalled with the left/right slide positions deviated, the adjuster unit could be damaged. After removing a front seat, do not operate the slider lever. (Manual seat)

am3zzw00036670
• Verify that there are no malfunctions in the forward/back slide of the seat and in the adjuster unit after installing a front seat.
• When performing the procedure with a front seat removed from the vehicle, perform the procedure on a clean cloth so as not to damage or soil the seat.
• When the passenger’s seat is removed, perform the seat weight sensor inspection using the M-MDS after installing the passenger’s seat. (See SEAT WEIGHT SENSOR INSPECTION [TWO-STEP DEPLOYMENT CONTROL SYSTEM – US/CANADA SPEC.].)
• When the passenger’s seat is replaced with a new one, perform the seat weight sensor calibration using the M-MDS. (See SEAT WEIGHT SENSOR CALIBRATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM – US/CANADA SPEC.].)

1.Remove the front seat belt lower anchor. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

2.Remove the front seat installation bolts. (See FRONT SEAT REMOVAL/INSTALLATION [(US)].)

3.Switch the ignition off.

4.Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

5.Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION [(US)].)

6.Remove the front seat side cover. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION [(US)].)

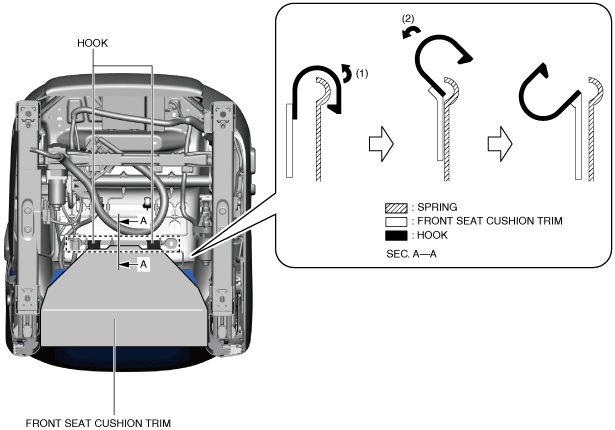

7.Move the hooks in the order of arrows (1) and (2) shown in the figure to detach the hooks from the springs.

am3zzw00036767

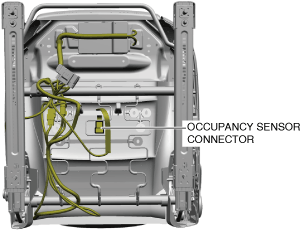

8.Disconnect the occupancy sensor connector. (Passenger’s side) (With standard deployment system, Mexico spec.)

am3zzw00036708

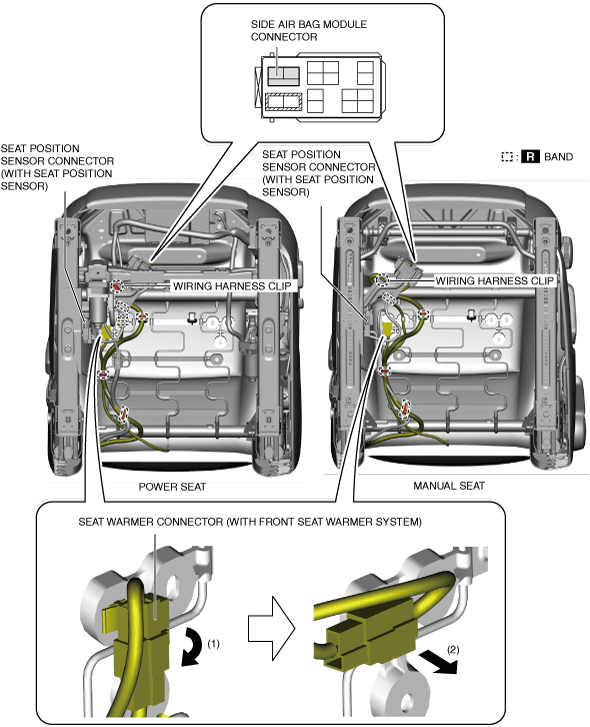

9.Disconnect the connectors at the positions shown in the figure.

am3zzw00036709

10.Move the seat warmer connectors in the order of arrows (1) and (2) shown in the figure and remove the connectors.

11.Remove the wiring harness clips.

12.Cut the bands.

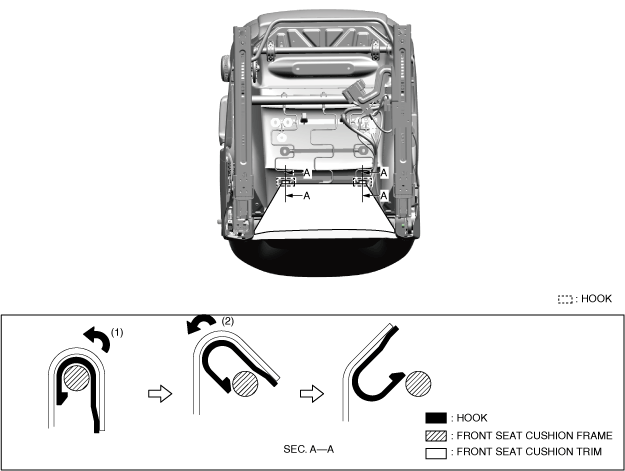

13.Move the hooks in the order of arrows (1) and (2) shown in the figure to detach the hooks from the front seat cushion frame. (See Front Seat Cushion Installation Note.)

am3zzw00036719

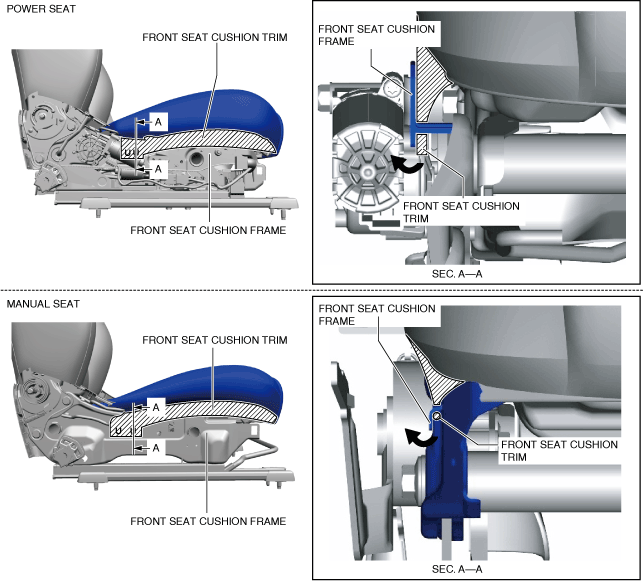

14.Move the front seat cushion trim in the direction of the arrow shown in the figure and remove the front seat cushion trim from the front seat cushion frame.

am3zzw00036720

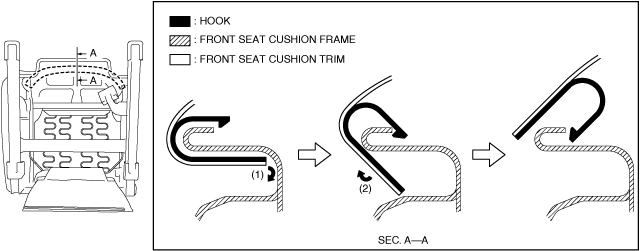

15.Move the hooks in the order of arrows (1) and (2) shown in the figure to detach the hooks from the front seat cushion frame.

am3zzw00036721
Caution
• If a C-ring is damaged when removing or installing the front seat cushion trim and the front seat cushion pad, it may not be possible to correctly install the front seat cushion trim and the front seat cushion pad. When removing or installing the front seat cushion trim and the front seat cushion pad, be careful not to damage the C-rings.
• If a C-ring is damaged, replace it with a new one.

16.Remove the C-rings at the positions shown in the figure and remove the front seat cushion trim from the front seat cushion pad. (See Front Seat Cushion Trim Installation Note.)

am3zzw00036722
Note
• The positions and number of C-rings differ depending on the type of seat.

17.Install in the reverse order of removal.



Front Seat Cushion Trim Installation Note

Caution
• If a C-ring is damaged when removing or installing the front seat cushion trim and the front seat cushion pad, it may not be possible to correctly install the front seat cushion trim and the front seat cushion pad. When removing or installing the front seat cushion trim and the front seat cushion pad, be careful not to damage the C-rings.
• If a C-ring is damaged, replace it with a new one.

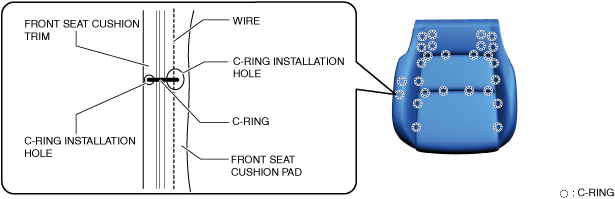

1.Align the C-ring installation holes of the front seat cushion trim with the C-ring installation holes of the front seat cushion pad and install the C-rings to the positions shown in the figure.

am3zzw00036723
Note
• Wrinkling can be easily prevented by installing the C-rings with a certain amount of tightening.

am3zzw00036724
• The positions and number of C-rings differ depending on the type of seat.

2.Press the front seat cushion pad inward while pulling the front seat cushion trim outward.

am3zzw00036725

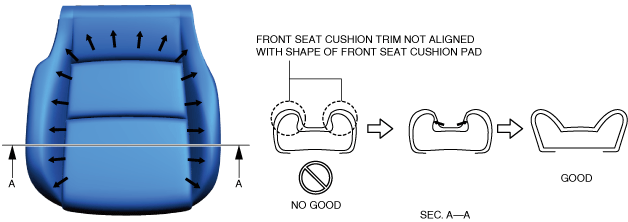

3.Align the front seat cushion trim with the shape of the front seat cushion pad while pressing the front seat cushion trim outward.

am3zzw00036726



Front Seat Cushion Installation Note

1.Pull the front seat cushion trim in the direction of the arrow shown in the figure and remove the wrinkles from the front seat cushion trim surface.

am3zzw00036727
