REAR SHOCK ABSORBER DISASSEMBLY/ASSEMBLY [(US)]
REAR SHOCK ABSORBER DISASSEMBLY/ASSEMBLY [(US)]
SM2335007
id0214009000x1
Special service tool (SST)
|
49 G027 006
Installer
|
 |
49 H027 002
Bearing remover
|
 |
Replacement part
|
Piston rod nut
Quantity: 1
Location of use: Rear shock absorber
|
Oil and Chemical Type
|
Rubber grease
Type: NIPPON GREASE RUBBER GREASE
|
Vehicle Identification Number (VIN): 3M**
-
Note
-
• The rear shock absorber cannot be disassembled.
Vehicle Identification Number (VIN): JM**
1.Remove the rear shock absorber. (See REAR SHOCK ABSORBER REMOVAL/INSTALLATION [(US)].)
2.Remove in the order indicated in the table.
3.Install in the reverse order of removal.

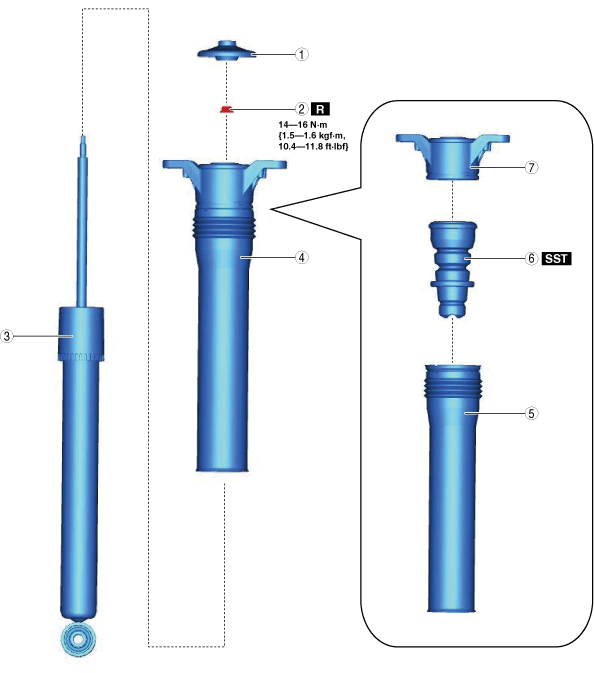

am3zzw00024755
|
|
1
|
Cap
|
|
2
|
Piston rod nut
|
|
3
|
Rear shock absorber
|
|
4
|
Dust boot, bump stopper, mounting rubber component
|
|
5
|
Dust boot
|
|
6
|
Bump stopper
|
|
7
|
Mounting rubber
|
Dust boot, Bump stopper, Mounting rubber Assembly Note
1.Wipe off grease on the bump stopper component using a cloth.
2.Apply rubber grease to the inside of the bump stopper component.
am3zzw00024756
|
-
Grease application amount
-
0.2—0.5 g {0.008—0.017 oz}
3.Assemble the bump stopper component and the mounting rubber using the SSTs and a press.
am3zzw00027647
|
4.Verify that the assembly position of the bump stopper and the mounting rubber is within the standard.
-
Standard
-
73 mm {2.874 in} or less
5.Install the dust boot.
