Warning

• Always perform the procedure with at least another person to prevent the hood from falling. Otherwise, the hood may fall and cause injury.

Removal

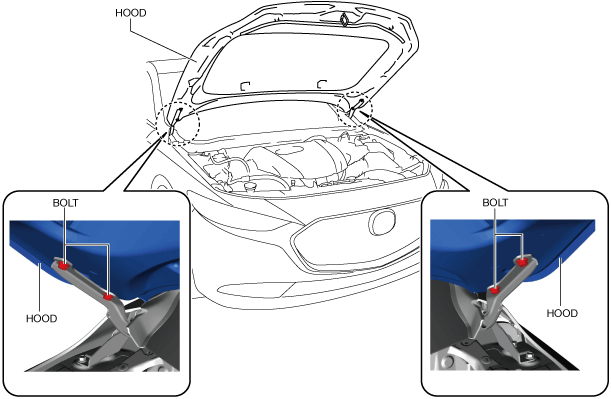

1.Remove the bolts shown in the figure and remove the hood.

am3zzw00030352

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

2. Remove the following parts:

1. Upper face (See UPPER FACE REMOVAL/INSTALLATION [(US)].)

2. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION [(US)].)

3. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

4. Front door (See FRONT DOOR REMOVAL/INSTALLATION.)

5. Rear deflector (See DEFLECTOR REMOVAL/INSTALLATION.)

6. Side step molding (See SIDE STEP MOLDING REMOVAL.)

7. Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION.)

8. Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)

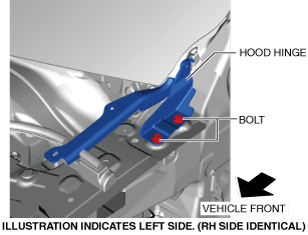

3. Remove the bolts shown in the figure and remove the hood hinge.

am3zzw00023213

Installation

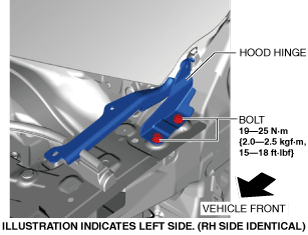

1. Install the bolts shown in the figure and install the hood hinge.

am3zzw00023214

2. Install the following parts:

1. Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)

2. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

3. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION [(US)].)

4. Upper face (See UPPER FACE REMOVAL/INSTALLATION [(US)].)

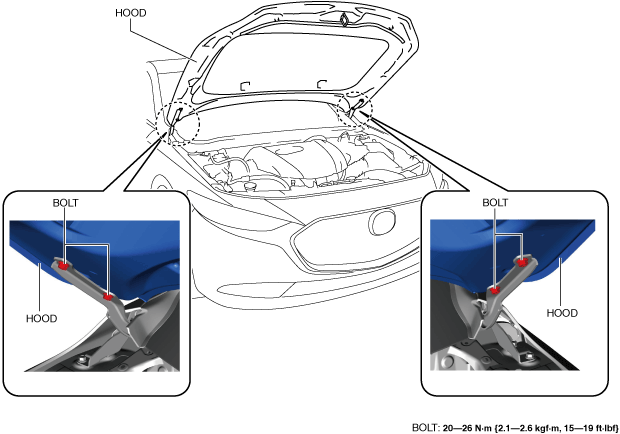

1.Install the bolts shown in the figure and install the hood.

am3zzw00023212

2.Perform the hood adjustment. (See HOOD ADJUSTMENT.)

1. Install the following parts:

1. Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION.)

2. Side step molding (See SIDE STEP MOLDING INSTALLATION.)

3. Rear deflector (See DEFLECTOR REMOVAL/INSTALLATION.)

4. Front door (See FRONT DOOR REMOVAL/INSTALLATION.)

2. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

3. Adjust the headlight aiming. (See HEADLIGHT AIMING [(US)].)

4. Perform the front door adjustment. (See DOOR ADJUSTMENT.)

5. Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

6. Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING.)

7. Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING.)
