Front Fender Stay (LH)

1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

2.Remove the following parts:

(1)Upper face (See UPPER FACE REMOVAL/INSTALLATION [(US)].)

(2)Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION [(US)].)

(3)Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(4)Front bumper slider No.1 (See BUMPER SLIDER REMOVAL/INSTALLATION.)

3.Remove the fastener.

am3zzw00023244

4.Remove wiring harness clips A and B.

am3zzw00030351

5.Remove the bolts shown in the figure and then remove the body ground.

am3zzw00023246

6.Remove the bolts shown in the figure.

am3zzw00023247

7.Install in the reverse order of removal.

8.Adjust the headlight aiming. (See HEADLIGHT AIMING [(US)].)

9.Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

10.Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING.)

11.Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING.)

Front Fender Stay (RH)

1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

2.Remove the following parts:

(1)Upper face (See UPPER FACE REMOVAL/INSTALLATION [(US)].)

(2)Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION [(US)].)

(3)Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(4)Front bumper slider No.1 (See BUMPER SLIDER REMOVAL/INSTALLATION.)

(5)Washer tank (See WASHER TANK REMOVAL/INSTALLATION.)

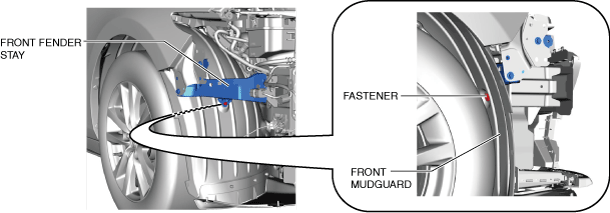

3.Remove the fastener.

am3zzw00023248

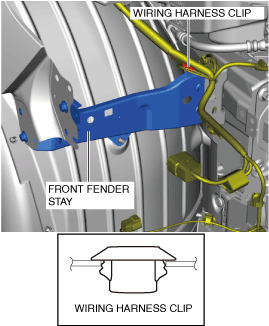

4.Remove the wiring harness clip.

am3zzw00027705

5.Remove the bolts shown in the figure and then remove the front fender stay.

am3zzw00023249

6.Install in the reverse order of removal.

7.Adjust the headlight aiming. (See HEADLIGHT AIMING [(US)].)

8.Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

9.Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING.)

10.Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING.)
