1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

2.Remove the following parts:

(1)Upper face (See UPPER FACE REMOVAL/INSTALLATION [(US)].)

(2)Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION [(US)].)

(3)Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(4)Front door (See FRONT DOOR REMOVAL/INSTALLATION.)

(5)Rear deflector (See DEFLECTOR REMOVAL/INSTALLATION.)

(6)Side step molding (See SIDE STEP MOLDING REMOVAL.) (See SIDE STEP MOLDING INSTALLATION.)

(7)Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION.)

(8)Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)

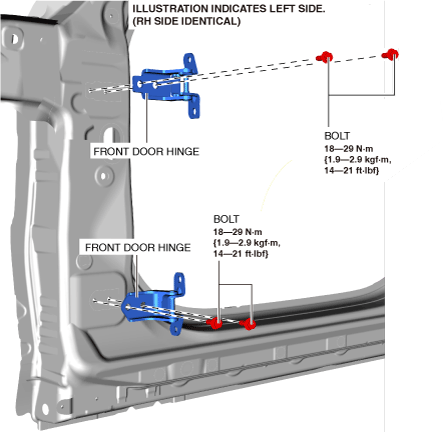

3.Remove the bolts shown in the figure.

am3zzw00029694

4.Remove the front door hinges.

5.Install in the reverse order of removal.

6.Adjust the front door. (See DOOR ADJUSTMENT.)

7.Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

8.Adjust the headlight aiming. (See HEADLIGHT AIMING [(US)].)
