Liftgate Lock Actuator Inspection

1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

2.Remove the liftgate latch and lock actuator. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

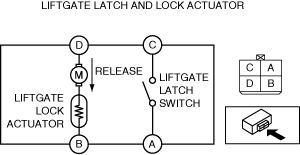

3.Apply battery positive voltage and connect the ground to the liftgate latch and lock actuator terminals as indicated in the table below and verify the operation condition.

am3zzw00027708

• If the operation cannot be verified, replace the liftgate latch and lock actuator. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

Liftgate Latch Switch Inspection

1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

2.Remove the liftgate latch and lock actuator. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

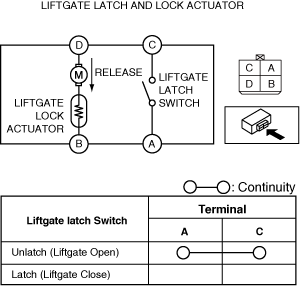

3.Verify that the continuity is as indicated in the table.

am3zzw00027709

• If not as indicated in the table, replace the liftgate opener switch. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

Note

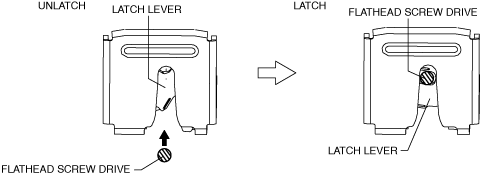

• Press in the latch lever of the liftgate latch and lock actuator using a flathead screwdriver, and set it to the latched condition.

ac8wzw00001212
