SMART BRAKE SUPPORT [REAR] (SBS-R) LOCATION INDEX

SMART BRAKE SUPPORT [REAR] (SBS-R) LOCATION INDEX

SM2337176

id152000011300

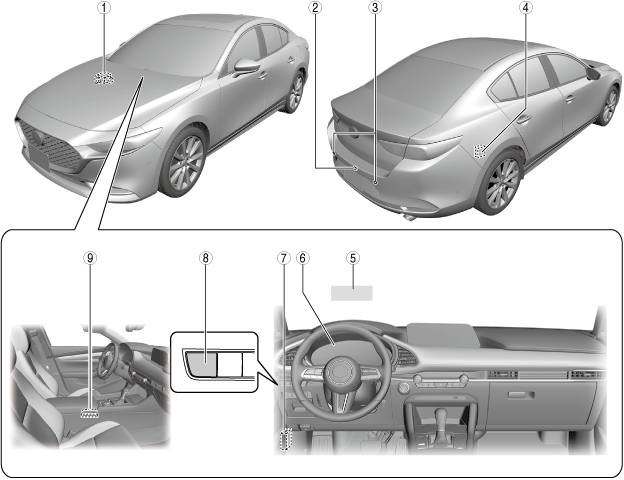

am3zzw00033021

1	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION [L.H.D. (US)].) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE [(US)].) (See DSC HU/CM INSPECTION.)
2	Rear mount camera (See REAR MOUNT CAMERA REMOVAL/INSTALLATION.) (See REAR MOUNT CAMERA INSPECTION.)
3	Rear ultrasonic sensor (See REAR ULTRASONIC SENSOR REMOVAL/INSTALLATION.) (See REAR ULTRASONIC SENSOR INSPECTION.)
4	Parking assist unit (ultrasonic) (See PARKING ASSIST UNIT (ULTRASONIC) REMOVAL/INSTALLATION.) (See PARKING ASSIST UNIT (ULTRASONIC) INSPECTION.)
5	Active driving display (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION [(US)].) (See ACTIVE DRIVING DISPLAY INSPECTION.)
6	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION [(US)].)
7	BODY CONTROL MODULE (BCM) (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) (See BODY CONTROL MODULE (BCM) INSPECTION [(US)].)
8	i-ACTIVSENSE switch (See i-ACTIVSENSE SWITCH REMOVAL/INSTALLATION.) (See i-ACTIVSENSE SWITCH INSPECTION.)
9	360°view monitor controle module (See 360°VIEW MONITOR CONTROL MODULE REMOVAL/INSTALLATION [(US)].) (See 360°VIEW MONITOR CONTROL MODULE INSPECTION.) (See 360°VIEW MONITOR SYSTEM AIMING.)
