FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION [(US)]
FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION [(US)]
SM2566405
id0914005112x1
1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)
2.Remove the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
3.Apply battery positive voltage and connect the ground to the front door and lock actuator terminals as indicated in the table below and verify the operation condition.
am3zzw00036800
|
|
Front door lock actuator |
B+ terminal |
Ground terminal |
Operation |
|---|---|---|---|
|
Driver’s side
|
G
|
E
|
Unlock
|
|
E
|
G
|
Lock
|
|
|
Passenger’s side
|
E
|
C
|
Unlock
|
|
C
|
E
|
Lock
|
-
• If not as indicated in the table, replace the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
4.Verify that the continuity is as indicated in the table.
am3zzw00026220
|
-
• If not as indicated in the table, replace the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
-
Note
-
• When inspecting the latch side of the front door latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.
ac5jjw00000020

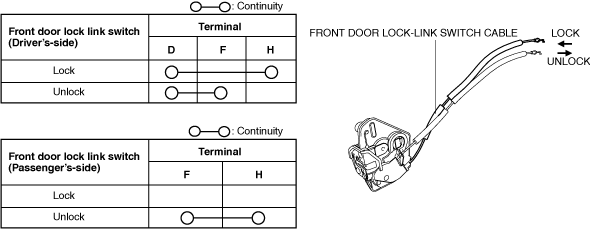

5.When the front door lock-link switch cable is pulled or pressed in, verify that the continuity is as indicated in the table.
am3zzw00027442
|
-
• If not as indicated in the table, replace the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
