4SD

Replacement part

Warning

• Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.

1.Fully lower the rear door glass.

2.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

3.Remove the following parts:

(1)Power window subswitch (rear) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

(2)Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(3)Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

(4)Rear door quarter glass (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION.)

(5)Rear beltline molding (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION.)

(6)Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION.)

4.Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

5.Connect the power window subswitch connector.

6.Perform the rear door glass preparation. (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

7.Remove the rear door glass. (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

8.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

9.Disconnect the power window subswitch connector.

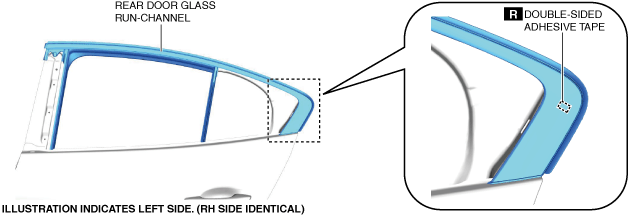

10.Remove the double-sided adhesive tape in the position shown in the figure using the utility knife.

am3zzw00029550

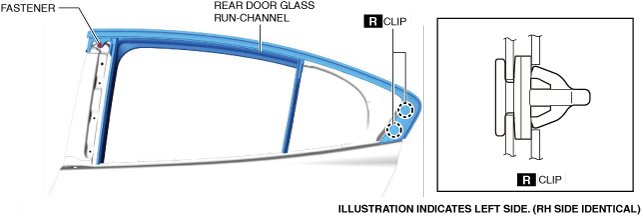

11.Remove the fastener.

am3zzw00029551

12.Using a remover tool, detach the clips.

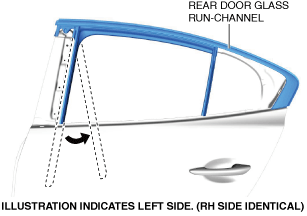

13.Partially peel back the rear door glass run-channel.

am3zzw00027466

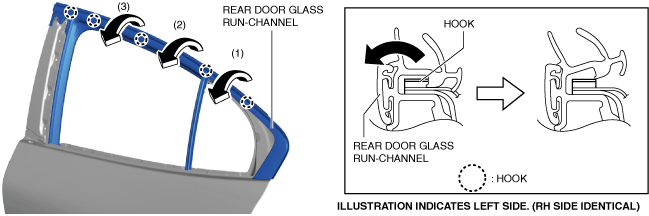

14.Move the rear door glass run-channel in the order of arrows (1), (2), and (3) shown in the figure and remove it from the rear door hooks.

am3zzw00029552

15.Remove the rear door glass run-channel.

16.Install in the reverse order of removal. (See Rear door glass run-channel installation note.)

Rear door glass run-channel installation note

1. When a rear door glass run-channel is to be reused, perform the following procedure:

1. Cut double-sided adhesive tape of 1 mm {0.04 in} thickness to the size shown in the figure. (2)

am3zzw00031190

2. Stick the 2 pieces of double-sided adhesive tape cut in Step 1 together.

am3zzw00031191

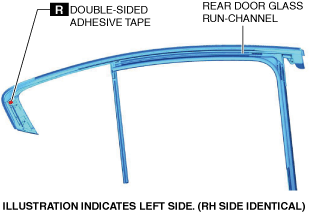

3. Apply primer to the double-sided adhesive tape application position.

am3zzw00031192

4. Apply the double-sided adhesive tape cut in Step 2 to the position shown in the figure.

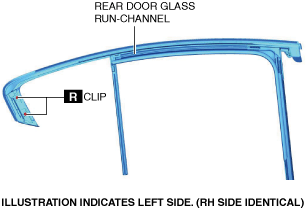

5. Affix new clips.

am3zzw00029553

5HB

1.Fully lower the rear door glass.

2.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

3.Remove the following parts:

(1)Power window subswitch (rear) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

(2)Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(3)Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

(4)Rear door quarter glass (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION.)

(5)Rear beltline molding (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION.)

(6)Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION.)

4.Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

5.Connect the power window sub switch connector.

6.Perform the rear door glass preparation. (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

7.Remove the rear door glass. (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

8.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

9.Disconnect the power window subswitch connector.

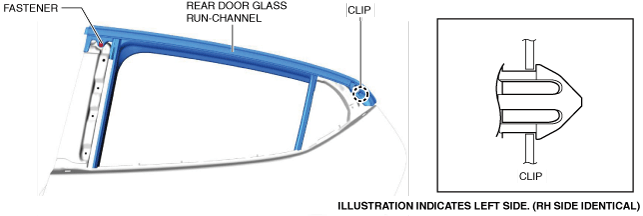

10.Remove the fastener.

am3zzw00024573

11.Using a remover tool, detach the clip.

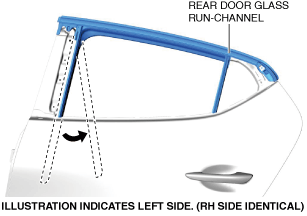

12.Partially peel back the rear door glass run-channel.

am3zzw00029554

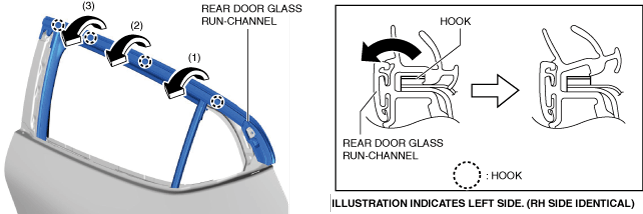

13.Move the rear door glass run-channel in the order of arrows (1), (2), and (3) shown in the figure and remove it from the rear door hooks.

am3zzw00024575

14.Remove the rear door glass run-channel.

15.Install in the reverse order of removal.
