CONVENTIONAL BRAKE SYSTEM LOCATION INDEX [(US)]

CONVENTIONAL BRAKE SYSTEM LOCATION INDEX [(US)]

SM2565958

id041100800198

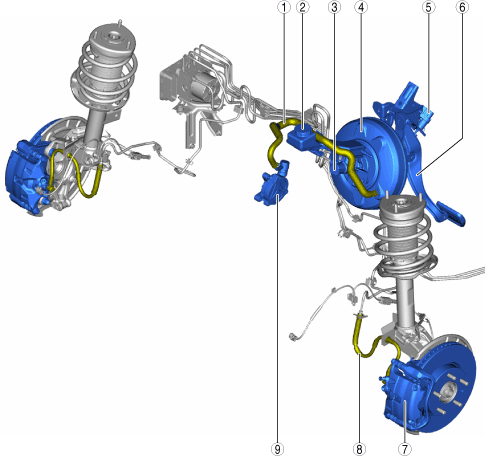

Vehicle Front Side
am3zzw00022441
1
Vacuum line
(See VACUUM LINE INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))].)
(See VACUUM LINE INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))].)
(See VACUUM HOSE REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))].)
(See VACUUM HOSE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))].)
2
Brake fluid
(See BRAKE FLUID INSPECTION [(US)].)
(See BRAKE FLUID AIR BLEEDING [(US)].)
3
Master cylinder
(See MASTER CYLINDER REMOVAL/INSTALLATION [L.H.D. (US)].)
(See BRAKE FLUID LEVEL SENSOR INSPECTION [(US)].)
4
Power brake unit
(See POWER BRAKE UNIT INSPECTION [(US)].)
(See POWER BRAKE UNIT REMOVAL/INSTALLATION [L.H.D. (US)].)
5
Brake switch
(See BRAKE SWITCH INSPECTION.)
6
Brake pedal
(See BRAKE PEDAL INSPECTION [(US)].)
(See BRAKE PEDAL REMOVAL/INSTALLATION [L.H.D. (US)].)
7
Front brake (disc)
(See FRONT BRAKE INSPECTION.)
(See FRONT BRAKE DISC REMOVAL/INSTALLATION.)
(See FRONT BRAKE DISC PAD REMOVAL/INSTALLATION.)
(See FRONT BRAKE CALIPER REMOVAL/INSTALLATION [(US)].)
(See FRONT BRAKE CALIPER DISASSEMBLY/ASSEMBLY.)
(See FRONT BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION.)
8
Front brake hose
(See FRONT BRAKE HOSE REMOVAL/INSTALLATION [(US)].)
9
Vacuum pump
(See VACUUM PUMP INSPECTION [(US)].)
(See VACUUM PUMP REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))].)
(See VACUUM PUMP REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))].)

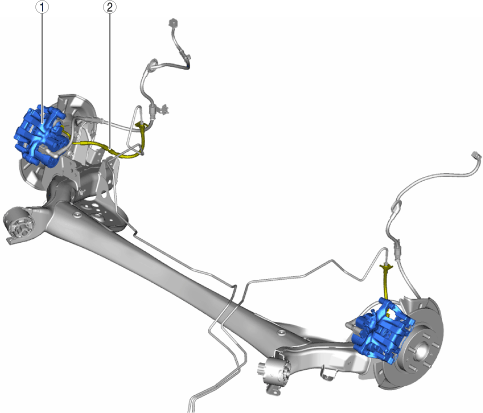

Vehicle Rear Side
am3zzw00022442
1
Rear brake (disc)
(See REAR BRAKE INSPECTION.)
(See REAR BRAKE DISC REMOVAL/INSTALLATION.)
(See REAR BRAKE DISC PAD REMOVAL/INSTALLATION.)
(See REAR BRAKE CALIPER REMOVAL/INSTALLATION [(US)].)
(See REAR BRAKE CALIPER DISASSEMBLY/ASSEMBLY [(US)].)
(See REAR BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION.)
2
Rear brake hose
(See REAR BRAKE HOSE REMOVAL/INSTALLATION [(US)].)
