360°VIEW MONITOR SYSTEM LOCATION INDEX [(US)]

360°VIEW MONITOR SYSTEM LOCATION INDEX [(US)]

SM2566528

id1520000073x1

am3zzw00024500

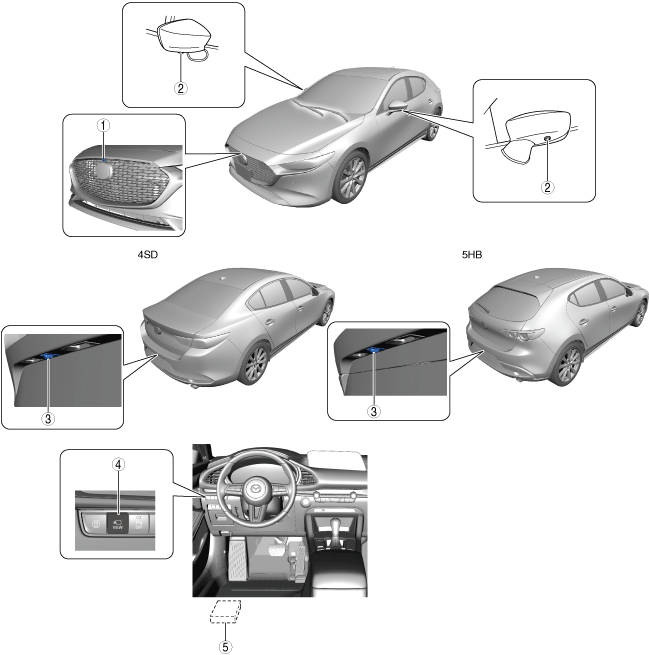

1	Front camera (See FRONT CAMERA REMOVAL/INSTALLATION.) (See FRONT CAMERA INSPECTION.) (See 360°VIEW MONITOR SYSTEM AIMING.)
2	Side camera (See SIDE CAMERA REMOVAL/INSTALLATION.) (See SIDE CAMERA INSPECTION.) (See 360°VIEW MONITOR SYSTEM AIMING.)
3	Rear mount camera (See REAR MOUNT CAMERA REMOVAL/INSTALLATION.) (See REAR MOUNT CAMERA INSPECTION.) (See 360°VIEW MONITOR SYSTEM AIMING.)
4	360°view monitor switch (See 360°VIEW MONITOR SWITCH REMOVAL/INSTALLATION.) (See 360°VIEW MONITOR SWITCH INSPECTION.)
5	360°view monitor controle module (See 360°VIEW MONITOR CONTROL MODULE REMOVAL/INSTALLATION [(US)].) (See 360°VIEW MONITOR CONTROL MODULE INSPECTION.) (See 360°VIEW MONITOR SYSTEM AIMING.)
