DOOR LOCK DOES NOT OPERATE [SECURITY AND LOCKS (US)]

DOOR LOCK DOES NOT OPERATE [SECURITY AND LOCKS (US)]

SM2566394

id0903k70229ka

Outline

Description	• All doors cannot be locked/unlocked using the door lock switch. • All doors cannot be locked/unlocked using the auto door lock.

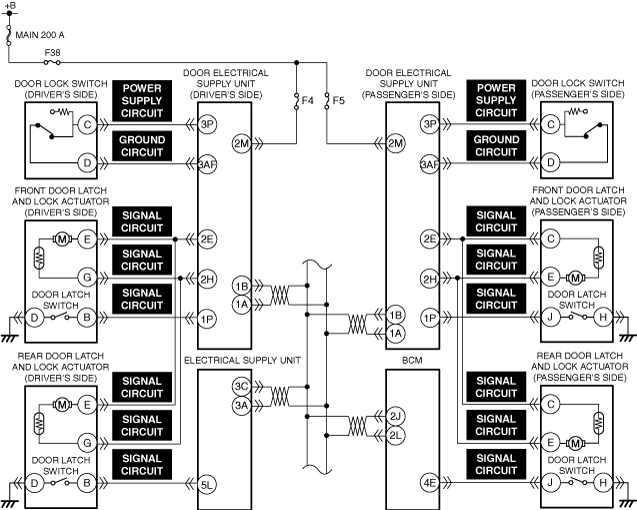

Possible cause	• Connector or terminal malfunction of the following parts: ― Door lock switch ― Front door latch and lock actuator ― Rear door latch and lock actuator ― BCM ― Electrical Supply Unit ― Door-electrical supply unit • Short to ground or open circuit in door lock switch power supply circuit • Open circuit in door lock switch ground circuit • Short to ground or open circuit in door lock actuator (front door latch and lock actuator) signal circuit • Short to ground or open circuit in door latch switch (front door latch and lock actuator) signal circuit • Short to ground or open circuit in door lock actuator (rear door latch and lock actuator) signal circuit • Short to ground or open circuit in door latch switch (rear door latch and lock actuator) signal circuit • Door lock switch malfunction • Front door latch and lock actuator malfunction • Rear door latch and lock actuator malfunction • Door-electrical supply unit malfunction

Diagnostic Procedure

Step	Inspection	Results	Action
1	VERIFY ALL SYSTEM DTCs • Perform the DTC inspection. (See DTC INSPECTION.) • Are any DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
1		No	Go to the next step.

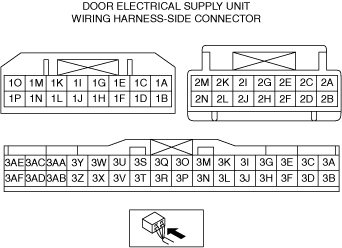

2	INSPECT DOOR LOCK SWITCH, FRONT DOOR LATCH AND LOCK ACTUATOR, REAR DOOR LATCH AND LOCK ACTUATOR, BCM, ELECTRICAL SUPPLY UNIT, AND DOOR-ELECTRICAL SUPPLY UNIT CONNECTORS FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
2		No	Repair or replace the malfunctioning location and perform the repair completion verification.
3	INSPECT DOOR LOCK SWITCH POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT • Inspect the power supply circuit for a short to ground and open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
3		No	Repair or replace the malfunctioning location and perform the repair completion verification.
4	INSPECT DOOR LOCK SWITCH GROUND CIRCUIT FOR OPEN CIRCUIT • Inspect the ground circuit for open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
4		No	Repair or replace the malfunctioning location and perform the repair completion verification.
5	INSPECT DOOR LATCH AND LOCK ACTUATOR SIGNAL CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT • Inspect the signal circuit for open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
5		No	Repair or replace the malfunctioning location and perform the repair completion verification.
6	INSPECT DOOR LOCK SWITCH FOR MALFUNCTION • Inspect the applicable part. (See DOOR LOCK SWITCH INSPECTION.) • Is the part normal?	Yes	Go to the next step.
6		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See DOOR LOCK SWITCH REMOVAL/INSTALLATION [(US)].)
7	INSPECT DOOR LATCH AND LOCK ACTUATOR FOR MALFUNCTION • Inspect the applicable part. (See FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION [(US)].) (See REAR DOOR LATCH AND LOCK ACTUATOR INSPECTION [(US)].) • Is the part normal?	Yes	Go to the next step.
7		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.) (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
Repair completion verification	VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Has the malfunction symptom been eliminated?	Yes	Complete the symptom troubleshooting. (Explain contents of repair to customer)
Repair completion verification		No	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(US)].) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction is not resolved, replace the door-electrical supply unit. (See DOOR-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION.)
