LIGHTING SYSTEMS LOCATION INDEX [(US)]

LIGHTING SYSTEMS LOCATION INDEX [(US)]

SM2336572

id0918008001x1

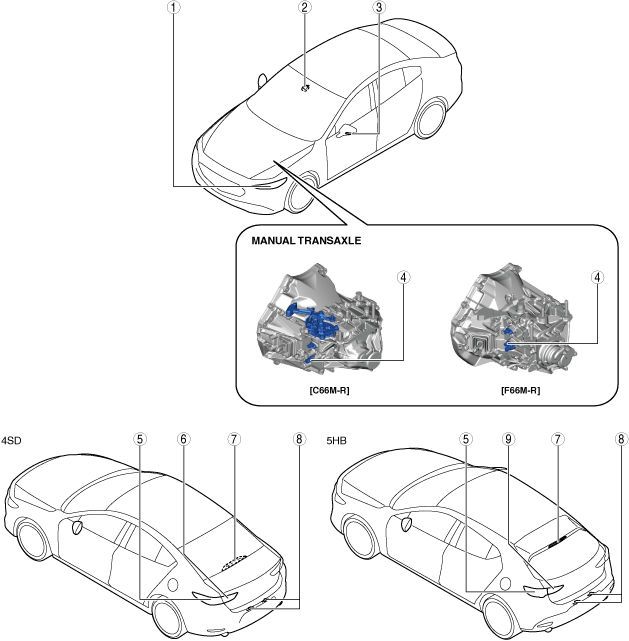

Exterior

am3zzw00034662

1	Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.) (See FRONT COMBINATION LIGHT INSPECTION.) (See FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY [(US)].) (See HEADLIGHT BULB REMOVAL/INSTALLATION.) (See HEADLIGHT AIMING [(US)].) (See DRL (DAYTIME RUNNING LIGHT) BULB REMOVAL/INSTALLATION [(US)].) (See PARKING LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION [(US)].) (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION.) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE [(US)].)
2	Auto light sensor (with auto light system) (See AUTO LIGHT SENSOR REMOVAL/INSTALLATION.) (See AUTO LIGHT SENSOR INSPECTION.) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE [(US)].)
3	Side turn light (with side turn light) (See SIDE TURN LIGHT REMOVAL/INSTALLATION.) (See SIDE TURN LIGHT INSPECTION.) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE [(US)].)
4	Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.) (See REAR COMBINATION LIGHT INSPECTION.) (See REAR TURN LIGHT BULB REMOVAL/INSTALLATION.) (See BRAKE LIGHT BULB REMOVAL/INSTALLATION.) (See REAR SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION [(US)].) (See TAILLIGHT BULB REMOVAL/INSTALLATION.) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE [(US)].)
5	Trunk lid light (4SD) (See TRUNK LID LIGHT REMOVAL/INSTALLATION.) (See TRUNK LID LIGHT INSPECTION [(US)].) (See TAILLIGHT BULB REMOVAL/INSTALLATION.) (See BACK-UP LIGHT BULB REMOVAL/INSTALLATION.)
6	High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.) (See HIGH-MOUNT BRAKE LIGHT INSPECTION.)
7	License plate light (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION.) (See LICENSE PLATE LIGHT INSPECTION.) (See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION.) (See LICENSE PLATE LIGHT SHORT-CORD REMOVAL/INSTALLATION.)
8	Liftgate light (5HB) (See LIFTGATE LIGHT REMOVAL/INSTALLATION.) (See LIFTGATE LIGHT INSPECTION [(US)].) (See TAILLIGHT BULB REMOVAL/INSTALLATION.) (See BACK-UP LIGHT BULB REMOVAL/INSTALLATION.)

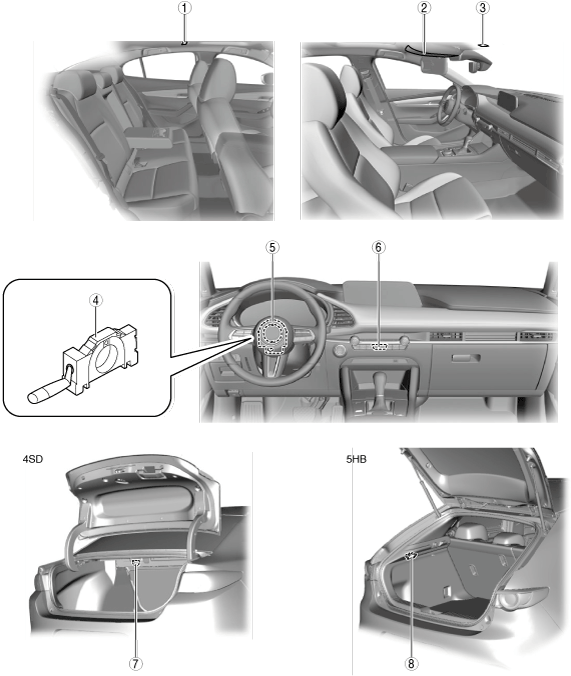

Interior

am3zzw00028503

1	Back-up light switch (MTX) (See BACK-UP LIGHT SWITCH INSPECTION.)
2	Rear map light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE [(US)].) (See REAR MAP LIGHT BULB REMOVAL/INSTALLATION.) (See REAR MAP LIGHT REMOVAL/INSTALLATION.) (See REAR MAP LIGHT INSPECTION [(US)].)
3	Front map light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE [(US)].) (See FRONT MAP LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT MAP LIGHT REMOVAL/INSTALLATION [(US)].) (See FRONT MAP LIGHT INSPECTION.)
4	Vanity mirror illumination (with vanity mirror illumination) (See VANITY MIRROR ILLUMINATION REMOVAL/INSTALLATION.) (See VANITY MIRROR ILLUMINATION INSPECTION.)
5	Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION [(US)].) (See LIGHT SWITCH INSPECTION [(US)].)
6	Steering angle sensor (with adaptive front lighting system (AFS) or smart city brake support (SCBS)) (See STEERING ANGLE SENSOR INSPECTION.)
7	Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.) (See HAZARD WARNING SWITCH INSPECTION.)
8	Trunk compartment light (4SD) (See TRUNK COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.)
9	Cargo compartment light (5HB) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE [(US)].) (See CARGO COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.) (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION.) (See CARGO COMPARTMENT LIGHT INSPECTION.)
