SECURITY AND LOCKS LOCATION INDEX [(US)]

SECURITY AND LOCKS LOCATION INDEX [(US)]

SM2336434

id0914005100x1



Locks and Openers

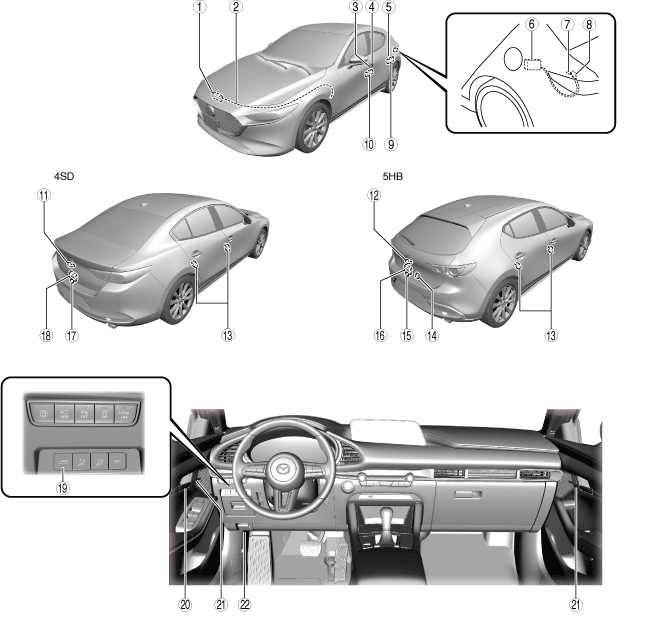

am3zzw00018379
1
Hood latch
(See HOOD LATCH REMOVAL/INSTALLATION.)
(See HOOD LATCH SWITCH INSPECTION.)
2
Hood release cable
(See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION [(US)].)
3
Front outer handle
(See FRONT OUTER HANDLE REMOVAL/INSTALLATION.)
4
Front door key cylinder
(See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION.)
5
Rear outer handle
(See REAR OUTER HANDLE REMOVAL/INSTALLATION.)
6
Fuel-filler lid lock actuator
(See FUEL-FILLER LID LOCK ACTUATOR REMOVAL/INSTALLATION [(US)].)
(See FUEL-FILLER LID LOCK ACTUATOR INSPECTION.)
(See FUEL-FILLER LID LOCK ACTUATOR MANUAL RELEASE PROCEDURE [(US)].)
7
Fuel-filler lid lock actuator short-cord
(See FUEL-FILLER LID LOCK ACTUATOR SHORT-CORD REMOVAL/INSTALLATION [(US)].)
8
Fuel-filler lid opener cable
(See FUEL-FILLER LID OPENER CABLE REMOVAL/INSTALLATION [(US)].)
9
Rear door latch and lock actuator
(See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
(See REAR DOOR LATCH AND LOCK ACTUATOR INSPECTION [(US)].)
10
Front door latch and lock actuator
(See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
(See FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION [(US)].)
11
Trunk lid opener switch (exterior)
(See TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION.)
(See TRUNK LID OPENER SWITCH INSPECTION.)
12
Liftgate opener switch
(See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION.)
(See LIFTGATE OPENER SWITCH INSPECTION.)
13
Door lock striker
(See DOOR LOCK STRIKER REMOVAL/INSTALLATION.)
(See DOOR LOCK STRIKER ADJUSTMENT.)
14
Door lock switch (liftgate)
(See DOOR LOCK SWITCH REMOVAL/INSTALLATION [(US)].)
(See DOOR LOCK SWITCH INSPECTION.)
15
Liftgate lock striker
(See LIFTGATE LOCK STRIKER REMOVAL/INSTALLATION.)
16
Liftgate latch and lock actuator
(See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
(See LIFTGATE LATCH AND LOCK ACTUATOR INSPECTION.)
17
Trunk lid striker
(See TRUNK LID LOCK STRIKER REMOVAL/INSTALLATION.)
18
Trunk lid latch and release actuator
(See TRUNK LID LATCH AND RELEASE ACTUATOR REMOVAL/INSTALLATION.)
(See TRUNK LID LATCH AND RELEASE ACTUATOR INSPECTION.)
19
Trunk lid opener switch (interior)
(See TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION.)
(See TRUNK LID OPENER SWITCH INSPECTION.)
20
Inner handle
(See INNER HANDLE REMOVAL/INSTALLATION.)
21
Door lock switch (interior)
(See DOOR LOCK SWITCH REMOVAL/INSTALLATION [(US)].)
(See DOOR LOCK SWITCH INSPECTION.)
22
Hood release lever
(See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION [(US)].)



Advanced Keyless Entry System / Push Button Start System / Immobilizer System

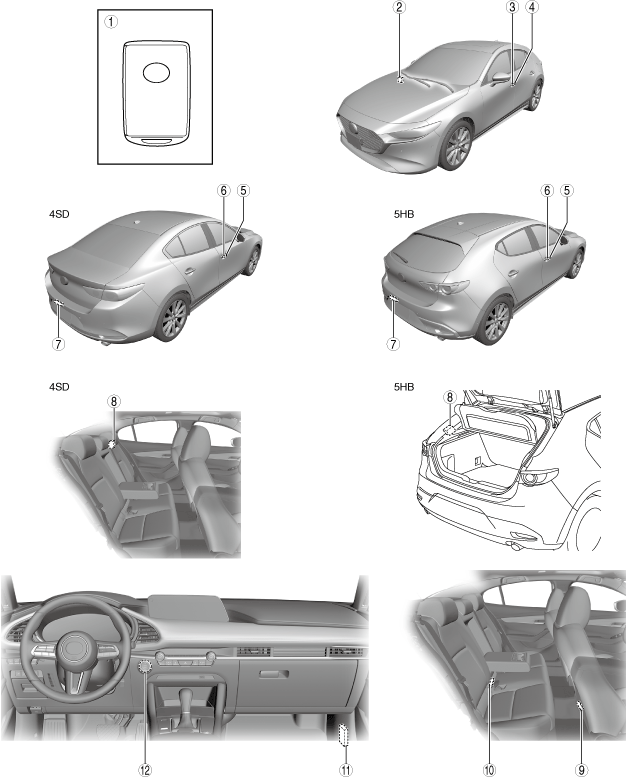

am3zzw00018380
1
Remote transmitter
(See REMOTE TRANSMITTER DISASSEMBLY/ASSEMBLY.)
(See REMOTE TRANSMITTER ID CODE REGISTRATION.)
(See CLEARING REMOTE TRANSMITTER.)
(See REMOTE TRANSMITTER BATTERY VOLTAGE INSPECTION.)
(See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [(US)].)
2
Keyless beeper
(See KEYLESS BEEPER REMOVAL/INSTALLATION.)
(See KEYLESS BEEPER INSPECTION.)
3
Keyless antenna (exterior, LF)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION [(US)].)
4
Touch sensor (LF)
(See TOUCH SENSOR REMOVAL/INSTALLATION.)
(See TOUCH SENSOR INSPECTION.)
5
Touch sensor (RF)
(See TOUCH SENSOR REMOVAL/INSTALLATION.)
(See TOUCH SENSOR INSPECTION.)
6
Keyless antenna (exterior, RF)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION [(US)].)
7
Keyless antenna (exterior, rear)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION [(US)].)
8
Keyless receiver
(See KEYLESS RECEIVER REMOVAL/INSTALLATION.)
(See KEYLESS RECEIVER INSPECTION.)
9
Keyless antenna (interior, front)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION [(US)].)
10
Keyless antenna (interior, rear)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION [(US)].)
11
LF control unit
(See LF CONTROL UNIT REMOVAL/INSTALLATION.)
(See LF CONTROL UNIT INSPECTION [(US)].)
12
Push button start
(See PUSH BUTTON START REMOVAL/INSTALLATION.)
(See PUSH BUTTON START INSPECTION.)



Keyless entry system / Push Button Start System / Immobilizer system

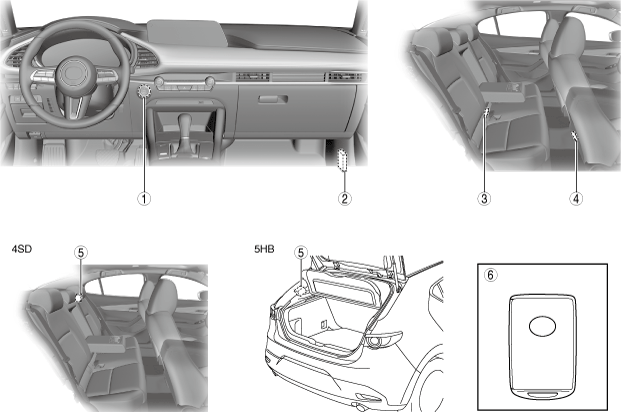

am3zzw00022051
1
Push button start
(See PUSH BUTTON START REMOVAL/INSTALLATION.)
(See PUSH BUTTON START INSPECTION.)
2
LF control unit
(See LF CONTROL UNIT REMOVAL/INSTALLATION.)
(See LF CONTROL UNIT INSPECTION [(US)].)
3
Keyless antenna (interior, rear)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION [(US)].)
4
Keyless antenna (interior, front)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION [(US)].)
5
Keyless receiver
(See KEYLESS RECEIVER REMOVAL/INSTALLATION.)
(See KEYLESS RECEIVER INSPECTION.)
6
Remote transmitter
(See REMOTE TRANSMITTER DISASSEMBLY/ASSEMBLY.)
(See REMOTE TRANSMITTER ID CODE REGISTRATION.)
(See CLEARING REMOTE TRANSMITTER.)
(See REMOTE TRANSMITTER BATTERY VOLTAGE INSPECTION.)
(See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [(US)].)



Theft-deterrent System

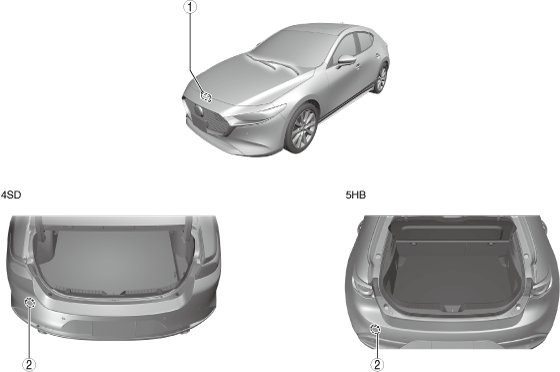

am3zzw00022052
1
Hood latch switch
(See HOOD LATCH SWITCH INSPECTION.)
2
Theft-deterrent horn
(See THEFT-DETERRENT HORN REMOVAL/INSTALLATION.)
(See THEFT-DETERRENT HORN INSPECTION.)
